Welcome to the sixth entry in April’s Medium Mod Contest.  One Medium Mod will be published in every Email Alert in April.  At the end of the month we’ll hold a reader vote to determine April’s winner.  Click here for information about the 2021 Mod Contest, including how to enter.

RV Camper Fresh Air Return

Charles Coushaine, Punta Gorda, Florida
Furnace Fresh Air Return
2001 Ford F-350
2012 Chalet DS116RB

For about eight years I have had an unknown problem with my truck camper’s heating system.  It would blow hot air for about 20-minutes, shut off for about another 20-minutes, and repeat.

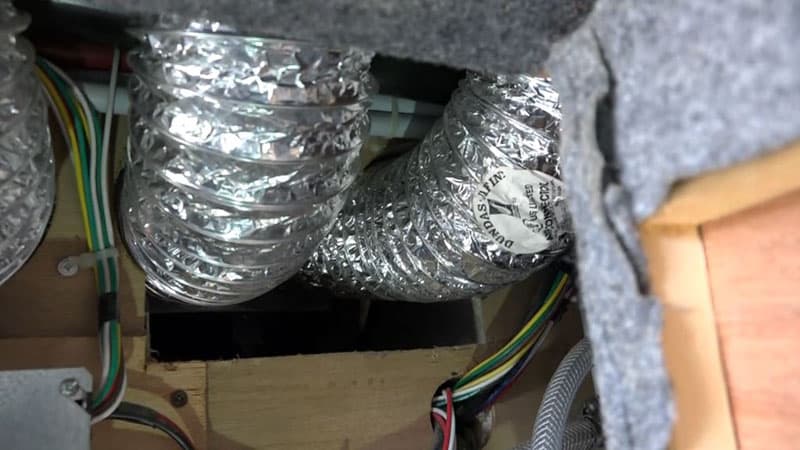

Fresh Air Return Furnace Ducting

It never ran steady to the set temperature. After discussing this issue with my very knowledgeable friend, Mikeee Tassinari, he said that my camper did not have a fresh air return back to the furnace. Hence, the furnace was getting starved for air, overheating, and shutting off.

So, this is how we fixed the air return problem.

With Mike Tassinari’s help, we opened up the basement and carefully cut a slot just below the furnace’s feed vent lines. This would allow air to return to the furnace. However, this only solved half the problem.

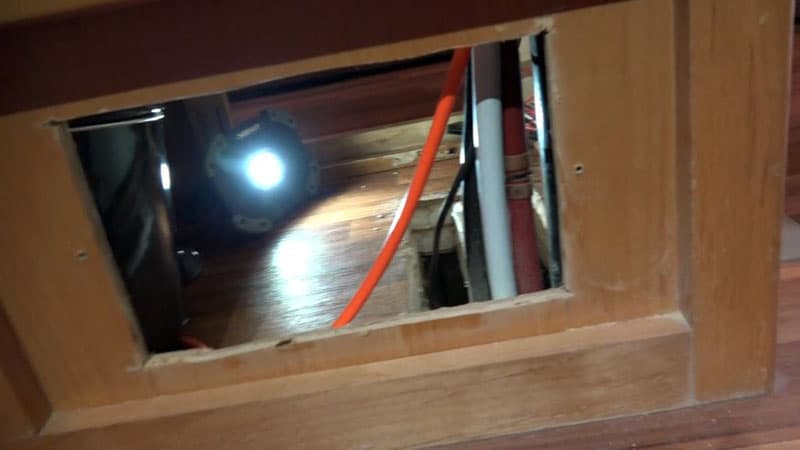

Fresh Air Return Furnace Under Sink

Next we needed to get the air from inside the cabin to the basement.

Fresh Air Return Furnace Under Cabinet

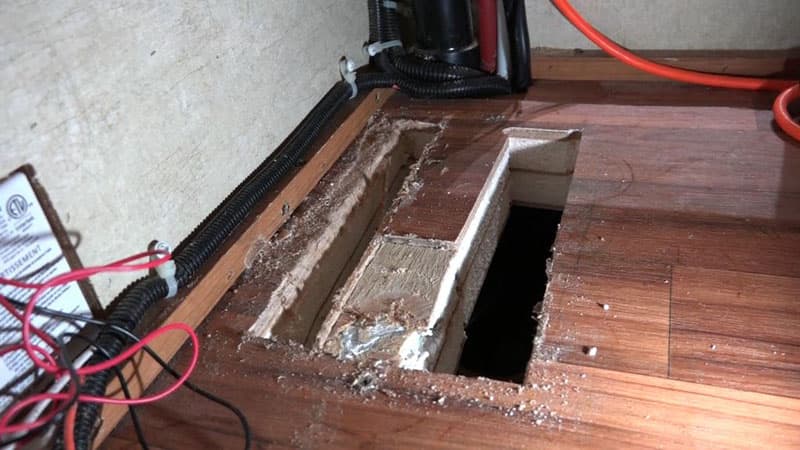

Fresh Air Return Holes In Floor

Not wanting any large grates in my floor, I decided to make the cut through the floor into the basement by going inside of the bottom of my kitchen island.

Fresh Air Return heat ducting

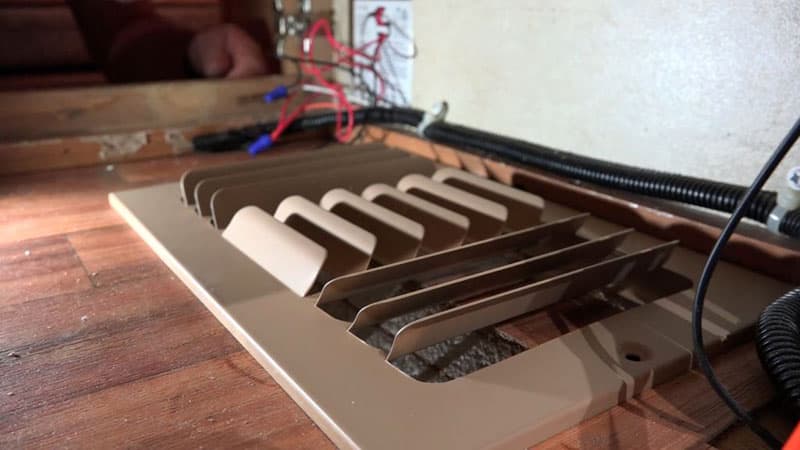

Then, I added a second grate in the side of the island and voila, the air flow problem was solved!

Fresh Air Return Grill Island Walljpg

To see my finished modification, click on the following link:

We have tested this furnace fresh air return vent multiple times and it works great spectacular! It’s amazing to think that it took me eight years to discover that I had this problem.

Fresh Air Return Furnace Completed

It took me four hours to complete this modification and cost me $25.  In my opinion, the skill level of this modification is medium.

Disclaimer: The modifications above are submitted by Truck Camper Magazine readers. It is your responsibility to make sure that any do-it-yourself modification project you undertake is safe, effective, and legal for your situation.
