Greg Gabert, Seminole, Florida
Aerofoil Wind Deflector
2019 Ram 3500
2017 Palomino SS-1200 Backpack Edition
As a retired Aerospace Design Engineer, I always marvel at the aerodynamically inefficient blunt leading edge of some truck campers. Even on my new Palomino pop-up, there is still 12-inches of leading-edge flat. I have found that at speeds above 60, my fuel mileage is severely compromised.
Time permitting, I avoid this issue by traveling mostly back roads and poking around small towns to savor the local amenities and maybe that BBQ on the corner. Ah, I digress.
My Palomino sits really high, so it also has quite a gap at the truck’s roofline.

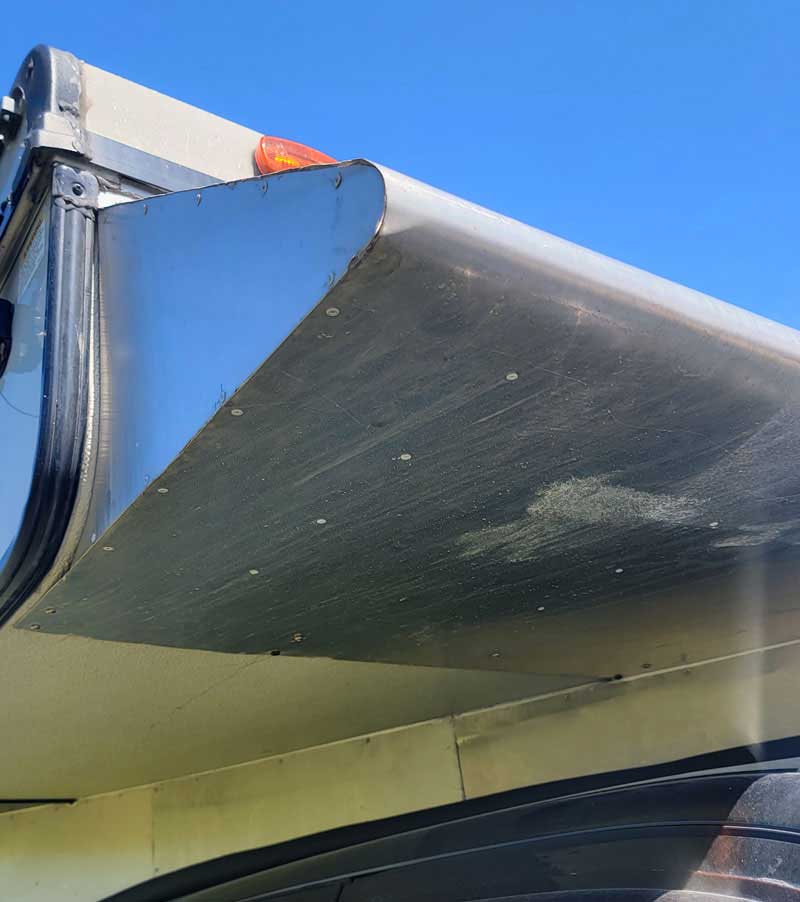

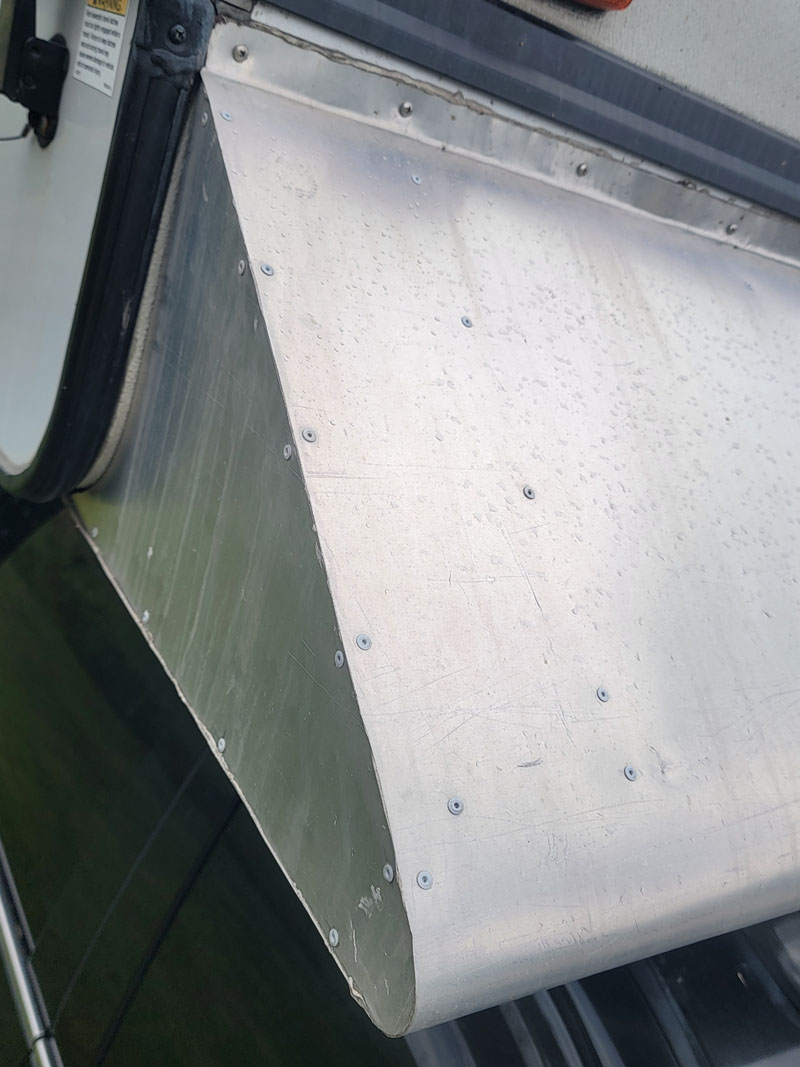

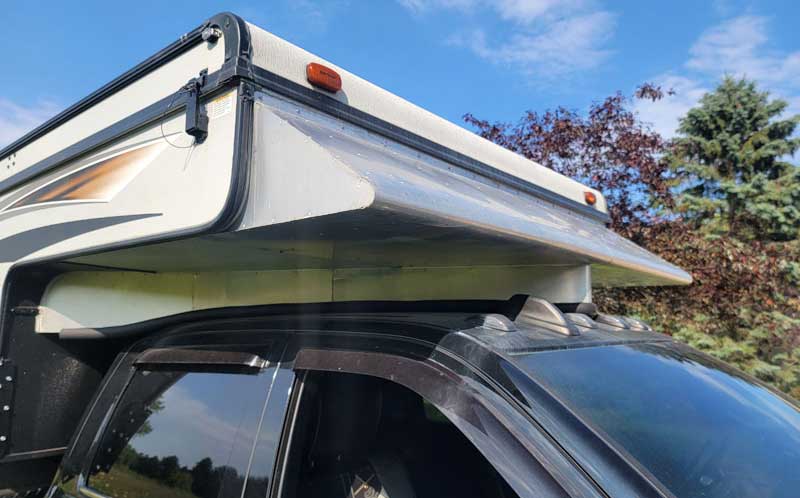

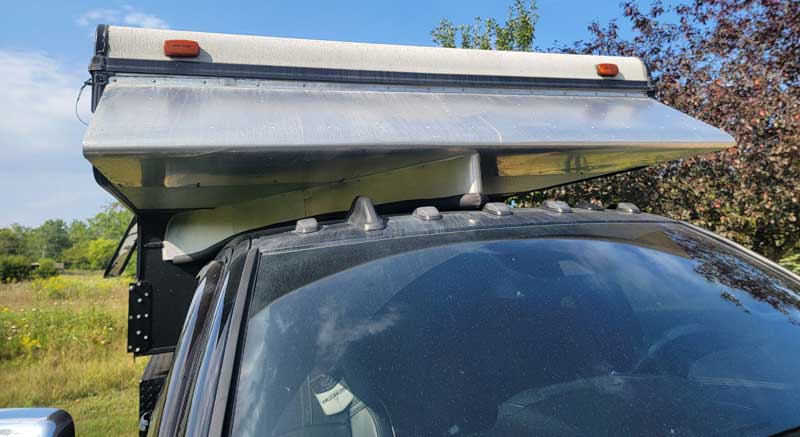

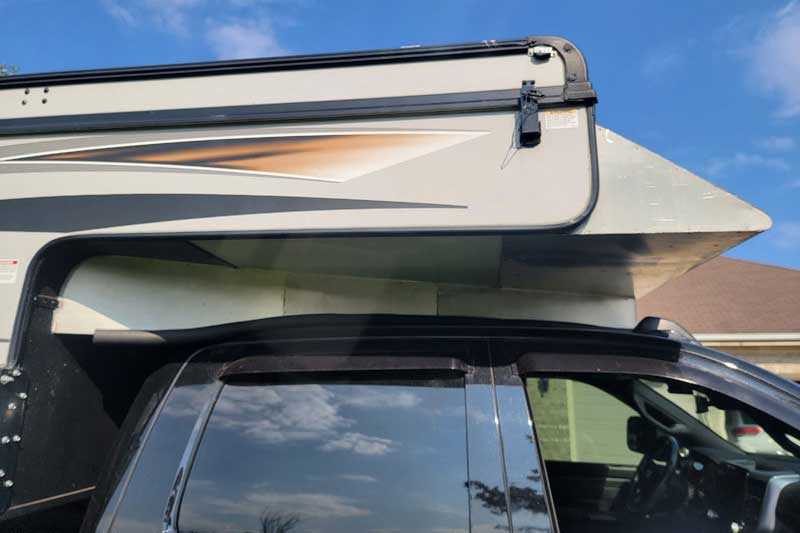

I added the front foil to direct the air above the camper and a V above the truck’s roof to channel the air away from that flat dead wall behind the pickup cab.
We have an ALRO metals supplier in my area. I dug through their aluminum remnant racks for my materials. A 30-degree bend was formed in the top edge and stainless screws (6-inch spacing) were utilized to attach the upper edge to the camper. I used Loctite polyseal to seal all joints.
The curved bend in the wing was formed on the driveway using a piece of 1-inch electrical conduit clamped to the aluminum sheet. Even though the aluminum sheet was only .030 of an inch, it required the assistance of my visiting brother-in-law and sister to accomplish the bend. I suspect it was 6061 and not 5052 aluminum.
I used 1/2-inch by 1/2-inch by 1/16-inch aluminum 90-degree angle iron for support and reinforcement (to eliminate any resonance and the potential for oil canning due to air pressure) which was pop-riveted to the upper flat portions of the foil using 1/8-inch aluminum rivets.
Underneath, I attached the two-foot long section of the foil to the bottom of the camper with stainless screws. I did not caulk this lower area. Next, I closed the sides of the foil using the angle aluminum, rivets, and caulk.
For the V, I once again used the angle aluminum screwed to the bottom of the camper and flat sheet aluminum. There is a 3/4-inch gap between this sheet of aluminum and the top of the truck. I filled this gap using rubber 1/2-inch hot water pipe insulation. I ran out of time last spring and did not finish the final pieces of sheet stock to close in the rear of the truck cab.
Well, I know it has to improve fuel economy. How much, I’m not sure. I upgraded my truck and camper. This mod occurred right at that transition point.
I am currently getting 16-miles per gallon at 69 miles per hour. I have a 2019 Ram 3500, diesel, crew cab, single rear wheel, four wheel drive truck with the 3.73 gear ratio with this mod. It would be nice to have access to a wind tunnel to really dial it in!
8′ x 48″ .030″ aluminum sheet. Remnant pile at $3.50/pound
30 feet 1/2-inch by 1/16-inch aluminum angle. Remnant pile at $3.50/pound
Rubber pipe insulation $6.00 each at Home Depot
It took me 12 hours to complete this modification and cost me $100. In my opinion, the skill level of this modification is medium.
