Welcome to the 2025 Cube Series Buyers Guide!
New Cube Series campers are for sale through Cube Series dealers in the United States and Canada.
To contact Cube Series in Oregon, call 541-728-4948. To visit the Cube Series website, go to cubeseries.com. For additional information, request a free Cube Series brochure.

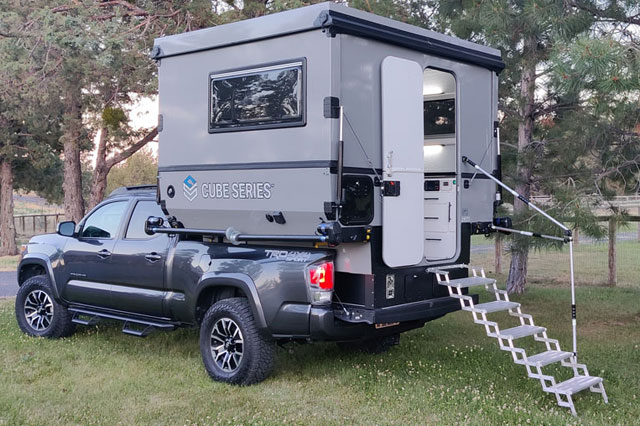

The 2025 Cube Series is a hard side, pop-up truck camper with a base MSRP of $43,509. For further information on this model, check out the Introducing Cube Series article.
 |
 |
 |
| Specifications | |
| Dry Weight | 1,206 pounds |
| Wet Weight* | 1,980 pounds |
| Floor Length | 88″ |
| Overall Length | 96″ |
| Exterior Width | 88″ |
| Interior Popped Up Height | 78″ |
| Collapsed Height | 52″ |
| Exterior Height | 94″ |
| Cabover Height, mattress to ceiling | N/A |
| Dinette Bed Size | 75″ x 43″ |
| Center of Gravity | N/A |
| Truck Type | Mid-Size and Full-Size |
| Capacities | |
| Fresh | 21 gallons |
| Grey | 6 gallons |
| Black | Optional 2.5 gallons |
| Toilet Type | Optional Built-In Cassette |
| Shower | TBD |
| Water Heater | 1.7 gallons |
| Cabover | None |
| Refrigerator | 1.7 cu ft, two-way 12v/110v |
| Jacks | Manual standard, Electric optional, Quick Disconnect standard |
| Propane Tanks | 20 pounds vertical |
| Inverter | 2000-watt optional |
| Solar | 760-watts optional |
| Batteries | 100Ah Group 31 AGM battery standard, 360Ah lithium optional |
| Warranty | Two Year Structural, Separate Appliance Warranties |
*Cube Series: dry weight, 1,206 pounds + 21 gallons fresh, 175.1 pounds + 1.7 gallon water heater, 14.2 pounds + 20-pound full propane tank, 20 pounds + 1 battery, 65 pounds + stuff (people, pets, food, clothing, gear, etc.), 500 pounds = 1,980.3 pounds
Truck Camper Dry and Wet Weights
Truck camper base dry weights have been provided by the manufacturers. Be aware that (a) each manufacturer has different standards and options that are included or excluded from their base dry weights, and (b) very few truck campers leave the factory without additional options. Make sure to add the weight of additional options for your truck and camper matching calculations.
The Truck Camper Magazine Buyers Guide uses a standardized equation to calculate truck camper wet weights. Starting with the manufacturer’s base dry weight, the equation adds the full fresh water weight, full hot water heater weight, full propane tank weight, battery weight, and 500 pounds for stuff.
All dry weights, specifications, capacities, and photographs were provided by Cube Series. Click here for more information on Cube Series.
