TCM EXCLUSIVE: 2012 Four Wheel Camper Fleet Self Contained

Tom Hanagan, President of Four Wheel Campers, debuts the first production self contained Four Wheel Camper complete with a shower. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...

Four Wheel Camper Fleet Self Contained

It’s no secret that truck camper customers want the impossible.  We want every feature, every amenity, and every accessory in the world, but none of the associated weight or cost.  Don’t tell us something isn’t possible.  Don’t cry to us about how expensive the materials are.  Just give us a light weight, energy efficient, low cost camper.  How hard is that?

In reality, it’s very hard.  Features, amenities, and accessories have weights and costs beyond the control of the camper manufacturers.  In fact, the lighter and more efficient a product is, the more costly it tends to be.  Consider the cost difference between incandescent lights and LED lights.  Consider the cost difference between luan plywood and a composite like Azdel.  Even with the growing popularity of LED lights and Azdel panels, they’re still significantly more expensive than their traditional tried and true alternatives.

Which brings me to the subject of this article, the debut of the first production self-contained Four Wheel Camper.  For years, perhaps decades, customers have asked Four Wheel Campers for an inside shower and cassette toilet system.  Until now, Four Wheel Campers only had a cassette toilet in their largest model, the Keystone.  Customers weren’t satisfied and continued to ask for a cassette toilet and an inside shower in Four Wheel Camper’s smaller models.

At long last, Four Wheel Campers is ready to deliver.  To debut the 2012 Four Wheel Camper Fleet Self Contained, we talked to Tom Hanagan, President of Four Wheel Campers.  You may never look at camper dinette the same way again.

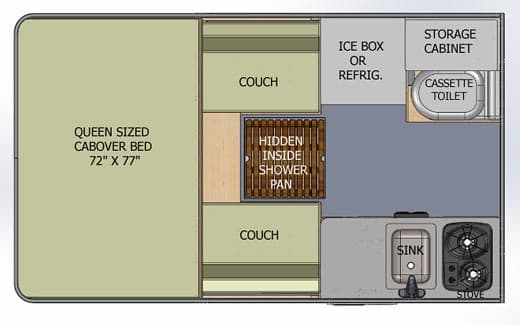

Four Wheel Self Contained Fleet floor plan



2012 Four Wheel Camper Fleet Self Contained Specifications:

The 2012 Four Wheel Camper Fleet Self Contained is a pop-up wet bath truck camper made for short bed trucks.  The interior floor length of the 2012 Four Wheel Camper Fleet Self Contained is 80" and the interior height is 6'4".  Four Wheel Campers is reporting the dry weight of the Four Wheel Camper Fleet Self Contained at 795 pounds with standard features.  The Fleet Self Contained has a 20 gallon fresh tank, can accommodate one or two batteries, and has two ten-pound propane tanks.  The base MSRP for the Four Wheel Camper Fleet Self Contained is $15,595.  For more information on the Fleet and other Four Wheel Campers, visit the Four Wheel Camper Buyers Guide.

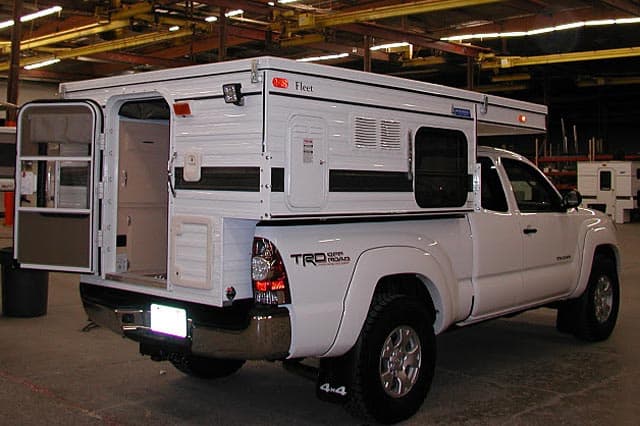

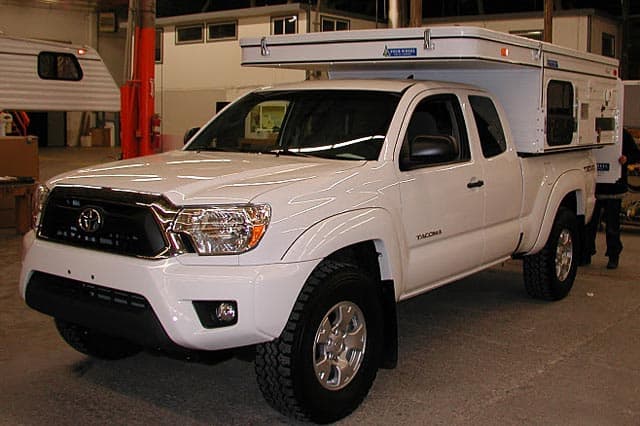

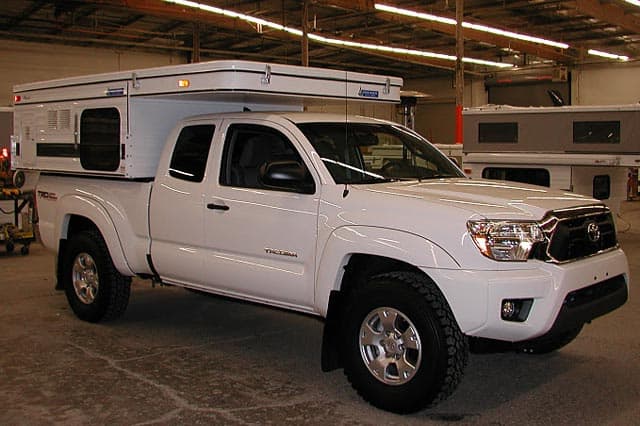

selfcontained-1 selfcontained-2 selfcontained-3



The following is an interview with Tom Hanagan, President of Four Wheel Campers, about the 2012 Four Wheel Camper Fleet Self Contained.

TCM: How did the Four Wheel Camper Fleet Self Contained come to be?  Was being self contained a feature Four Wheel Camper customers were asking for?

Tom: Yes, it was.  Many of our customers over the years have asked us for a cassette toilet in the camper and an inside shower.  We already offered a cassette toilet in our Keystone model, but not everyone can accommodate a nine foot camper on their truck.

We have had the concept in mind for a self contained Four Wheel Camper for a few years.  The challenge was how to implement a shower and cassette toilet into the confines of a 80” long, 75” inch wide Fleet model.  We targeted the Fleet for our first self contained camper as it was the smallest Four Wheel possible for a self contained model.  The larger Four Wheel Camper models are much easier to make self contained with their additional space.

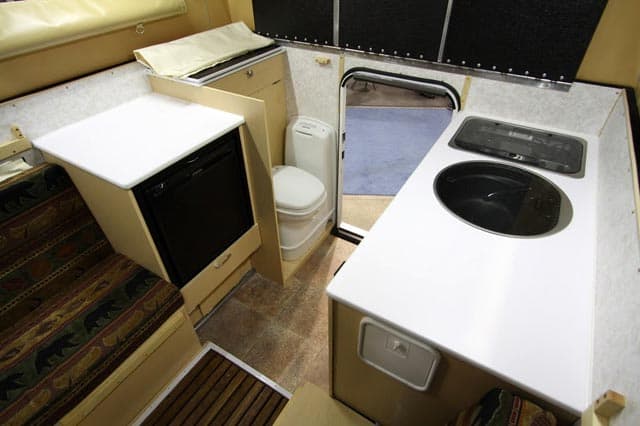

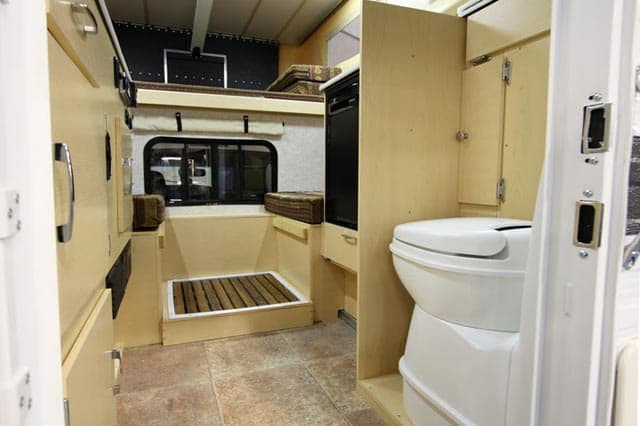

selfcontained-11 selfcontained-20 selfcontained-19



TCM: So how exactly did you put a shower and cassette toilet into an 80” long and 75” wide pop-up truck camper?

Tom: We had do some consolidation.  We reconfigured the rear floor assembly which gave us a tiny bit more room in the back of the camper to accommodate the cassette toilet.  We’re using the C-200 Thetford which features a swiveling toilet bowl.

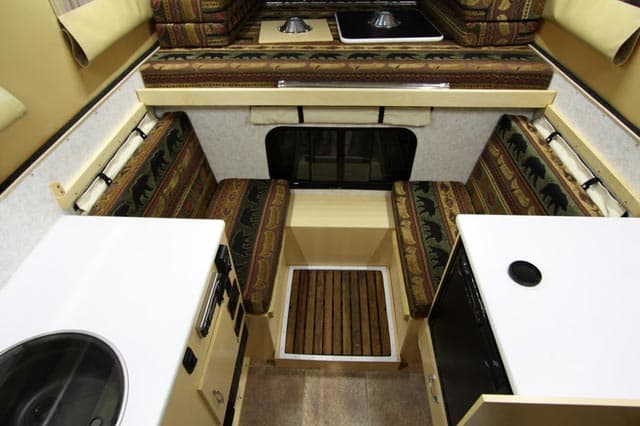

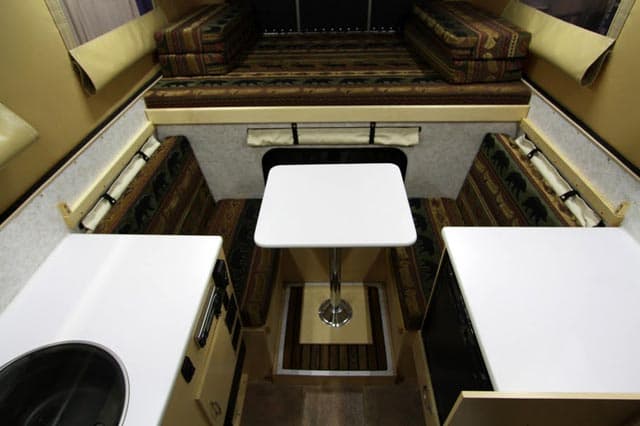

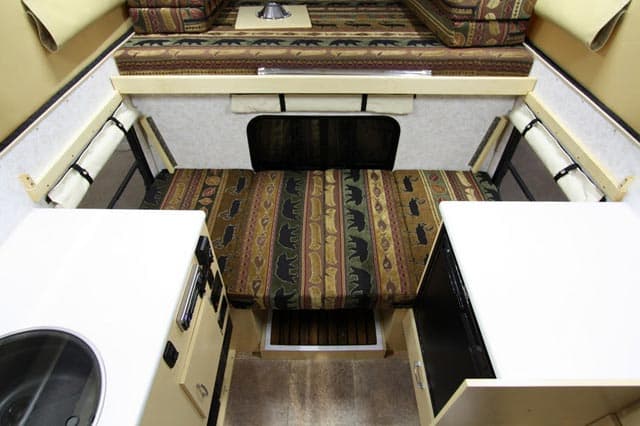

selfcontained-14 selfcontained-15 selfcontained-16



Finding room for the shower was the real challenge.  We have placed the shower between the dinette seats in the center of the camper.  The floor is raised to give space for the shower pan.  Obviously, this is a unique approach and our own design.

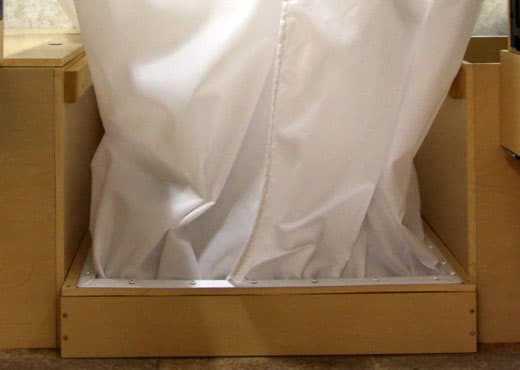

Self-contained shower floor close up

Above: Shower pan and curtain base



TCM: A shower in the middle of the dinette?  How does that work?

Tom: The owner attaches a shower curtain in the middle of the camper directly above the shower pan.  The cone shaped design of the shower curtain allows adequate elbow room and keeps the water in the pan.  The curtain is wider at the top than it is at the bottom.  Once it’s hung from the ceiling, you lift the shower grate and then trap the bottom of the shower curtain which forces the water into the shower pan.  The shower pan has a drain which runs to the back wall of the camper and outside.

We’ve tested the shower and curtain here at Four Wheel Campers and it works great.  I know our customers are going to love this solution.

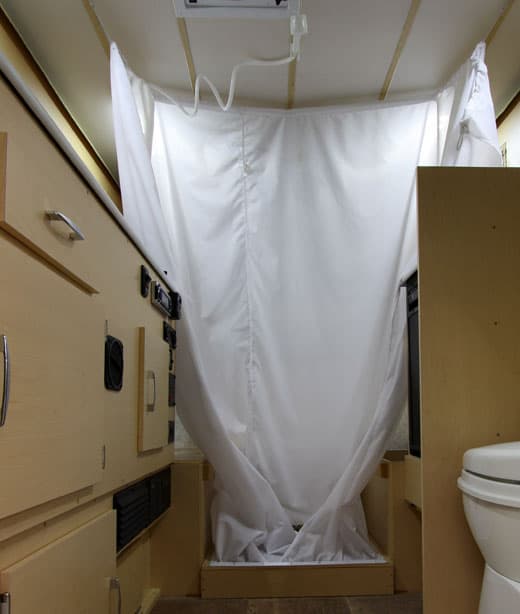

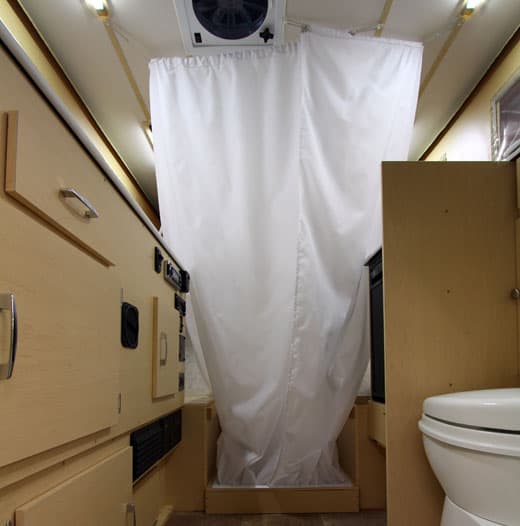

self contained shower curtain open

Above: The shower curtain attached above the shower pan and open for use



self contained shower curtain closed

Above: The shower curtain closed for use

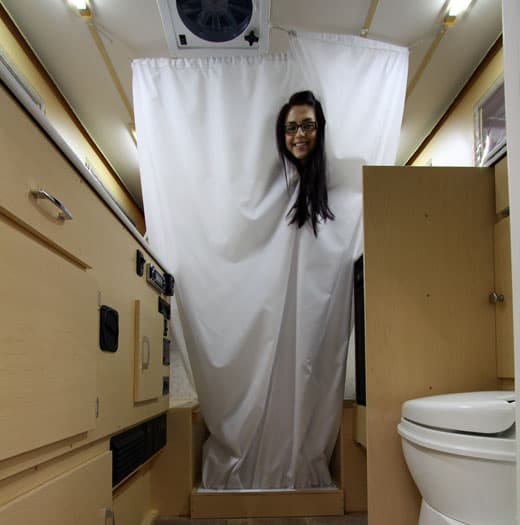

self contained shower

Above: Julia Kuzmenko, Bookkeeper for Four Wheel Campers, demonstrates how the Four Wheel Camper Self Contained shower curtain works.


TCM: Is there a holding tank for the shower?

Tom: No.  Four Wheel Campers do not have grey water holding tanks.  There’s just no room and we want to keep our campers as light and compact as possible, which precludes a grey water holding tank.

TCM: What Four Wheel Camper models is the self contained option available for?

Tom: The self contained option is currently available in our Fleet, Hawk, and Grandby models.  The Fleet and Hawk are short bed models and the Granby is a long bed model.  Models smaller than the Fleet are too narrow to accommodate the self contained features.  The Fleet could go on a Tacoma, Frontier, or a Dakota.  Those are the most common trucks for the Fleet.

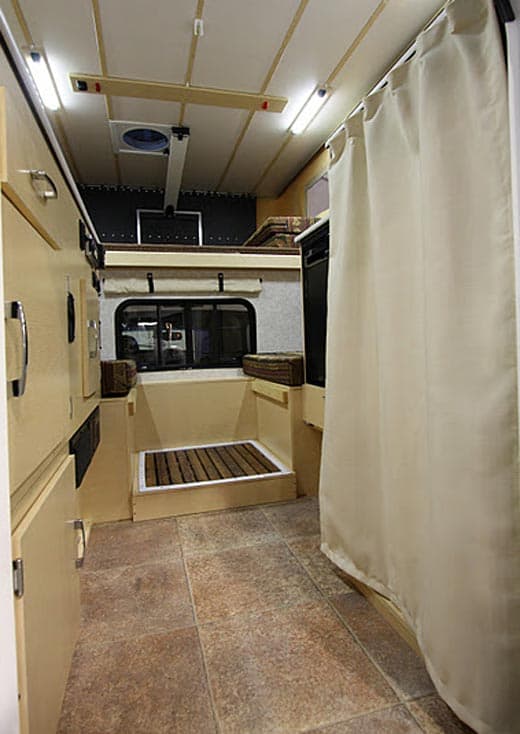

self contained 21



TCM: Four Wheel Camper owners are generally very concerned with the weight of their campers and center of gravity.  How does the self contained option affect weight and center of gravity?

Tom: The self contained option moves the center of gravity towards the rear of the camper because of repositioning other components to accommodate the shower and cassette toilet.

The center of gravity on the Fleet self contained is thirty-two inches from the front of the camper.  A non self contained Fleet center of gravity is twenty-six inches from the front of the camper.

The base dry weight of a Fleet Self Contained is 795 pounds.  The self contained option adds about seventy pounds to the non self contained Fleet model.  With typical options, the Fleet Self Contained will weigh 1,093 pounds.

The weight of the Fleet self contained that we built for the 2012 Sacramento International Sportsman Show was 1,193 pounds.  That particular camper has almost every option possible installed including Rieco-Titan mechanical camper jacks, Waeco 12-volt refrigerator, DSI water heater, AM/FM/CD stereo, satellite radio upgrade, Fantastic fan, extra roof vent, LED interior lights, screen door, front opening window, LED exterior lighting package, Propex furnace, Cramer glass top stove and sink, and LED flood lights.  It’s fully loaded.

TCM: What’s a Propex furnace?

Tom: Propex Heatsource furnaces are in all of the Four Wheel Campers we export to Europe.  They are very quiet and energy efficient with a consistent heat curve.

I went camping in a Four Wheel Camper this past December and it got down into the teens and twenties Fahrenheit.  The Propex kept the camper at a constant temperature and the electric draw is less than two amps.  You also use the same or less propane because of the consistency of the unit.  It’s really nice.

The Propex fits into the same space as a standard Atwood or Suburban heater and we offer it as an $995 upgrade.  A standard heater is $495 so the Propex is expensive, but worth it if you’re out in the cold a lot.

TCM: Did you have to reconfigure the rest of the camper to accommodate the cassette toilet and shower?

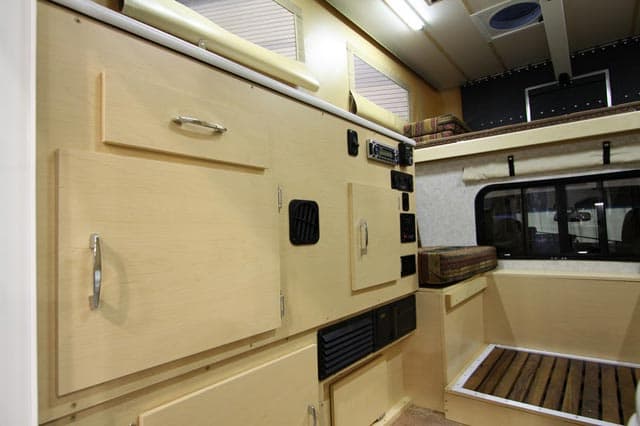

Tom: We put the refrigerator on the passenger side and moved the sink, stove, furnace, and water heater.  The dinette offers adequate seating for two people.  This is a two person camper with the amenities to go along with it.  It’s a very compact design.



self contained 18



TCM: Was any storage lost in translation?

Tom: We did lose some storage, but there’s still a lot more storage available than it would appear.  There is absolutely no wasted space in this camper.  It was truly a creative exercise in finding storage opportunities.  There is not as much storage in the self contained as there is in a regular Fleet, but you do have a shower and toilet.

It is possible to make a self contained Four Wheel Camper with significantly more room and storage, but you would have to build it for a flat bed truck.  We have built flat bed Four Wheel Campers for speciality applications and for export to Australia, New Zealand, and England.

TCM: It sounds like you’re dropping a big hint that flat bed Four Wheel Campers will soon be available here in the United States.

Tom: Not yet.  A typical flat bed truck raises the center of gravity significantly because the camper is located over the wheels.  We don’t want to raise the center of gravity because Four Wheel Campers are designed for off-road use.

We’re currently working on flat bed prototype ideas to mitigate this problem as much as possible for the domestic market.  Since we’re already building flat bed campers for export, our production team is ready to go.  As soon as we have a solution for the center of gravity, we’ll make an announcement.

TCM: What size holding tank does the C-200 cassette toilet have?

Tom: The cassette is four gallons and the fresh water reservoir is two gallons.  At that capacity, the C-200 is good for about fifteen or more uses before it needs emptying.

TCM: What is the base MSRP of the Four Wheel Camper Fleet Self Contained?

Tom: The base MSRP for the Four Wheel Camper Self Contained is $15,595.  With typical options the camper is $18,015.  The model we brought to the Sacramento ISE is $21,670, loaded with almost every upgrade and option.

TCM: How was the reaction to the camper at the Sacramento ISE?

Tom: Very, very positive.  People have been asking us to build a self contained camper for years.  Not having a toilet and shower has been a stumbling block for some people.  The response to the self contained option has been very good and we’ve already had people strongly considering this product.

TCM: Will our readers be able to see the Fleet Self Contained at any upcoming RV shows?



fwcfleetteam2

Above: Chicali, Jason Bahr, Elizabeth Diaz-Rojas, and Tom Hanagan with the Fleet Self-Contained

Tom: People can see the model we brought to the Sacramento ISE at the upcoming shows in Portland, Long Beach, San Diego, and the Overland Expo in Flagstaff.

TCM: When we interviewed you about the Raven in October you said, “We’re looking at lighter weight materials like lighter weight plywood for our cabinetry.  We’re also looking at the use of composites in the camper to increase the strength and decrease weight.”  Any progress on this front?

Tom: Yes we’re making progress with composites.  We’re continuing to research and examine the different components of the camper and trying different types of plywood for the cabinetry to save on weight.

Everything is going well at our new factory.  We are now offering the Filon fiberglass siding as a regular option on all of our campers. The Service department has grown and we are now providing a greater range of service offerings including repairs and refurbishing.  There are so many Four Wheel Camper owners out there who want to refurbish their campers.  With our new factory, we now have the increased capacity and space to handle their repair and refurbishing needs. Terry Budd, our operations manager, has done an excellent job of increasing the customer service quality and adding more and more value to helping our customers with repairs, upgrades, and refurbishing.

Speaking of repairs and refurbishing, our new dealer in Denver has dedicated half of his shop for the many 1970s and 1980s Four Wheel Campers in that area.  He was here at the Four Wheel Camper factory for almost a month working on the line.  He has formal training as a boat builder and has a thorough understanding of the complexity and nuances of the Four Wheel product.

TCM: We’ve been enjoying your steady flow of new Four Wheel Camper videos.  Are there any new videos in your future?

Tom: The latest Four Wheel Camper videos on updates and improvements has been received well among our customers and new people interested in the Four Wheel Camper models.

In the future we’ll be producing a video teaching new customers about how to use their camper complete with a review of how the camper systems work.  People are very excited at the walk around we give them with their new camper.  A week later they sometimes wonder how things work again.  We are going to be providing a CD with the walk through that will give them a thorough understanding of their new camper. After this, we will start a series on new topics.

We’re increasing our staff here at FWC.  The Six Pac camper line is coming closer to reality.  We’re actually working on the design this week.  Things are busy.  2010 was an excellent year and 2011 was our best year yet.  We have new dealers in Chile and South Africa.  Germany and Japan are doing well.  We’re excited because this year is Four Wheel Camper’s 40th anniversary.

TCM: Congratulations on the anniversary.  Gordon has a 40th anniversary this year as well.  Thanks Tom.  We’re looking forward to seeing the new Six Pac.

Tom: I’ll let you know as soon as it’s ready.
