Welcome to the third entry in June’s Medium Mod Contest.  One Medium Mod will be published in every Email Alert in June.  At the end of the month we’ll hold a reader vote to determine June’s winner.  Click here for information about the 2020 Mod Contest, including how to enter.

David Romero, Shreveport, Louisiana
Under The Sink Pull Out Wire Drawers
2017 Ram 2500
2017 Cirrus 820

Pull Out Wire Shelving Drawer With Items

We added a simple wire, full-extension, pull-out shelving unit to our under counter cabinet.

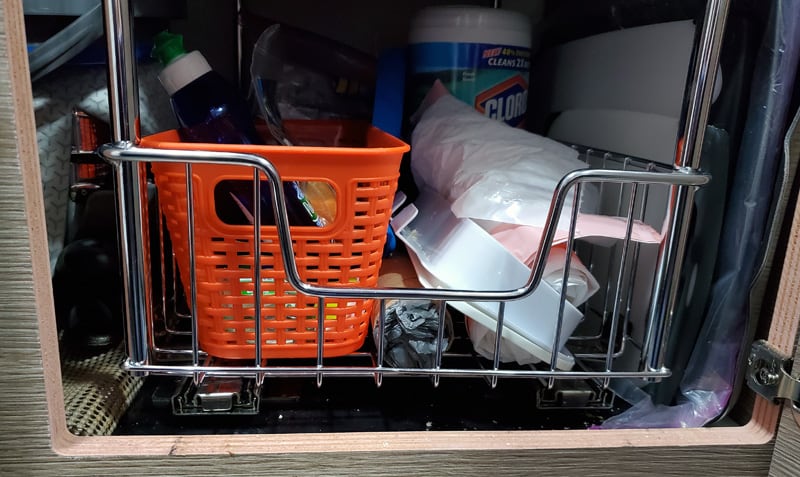

Pull Out Wire Bottom Sliding Drawer

The challenge was to find a unit that would fit the full depth, height and width.  A truck camper’s cabinets often do not follow traditional cabinet sizing.

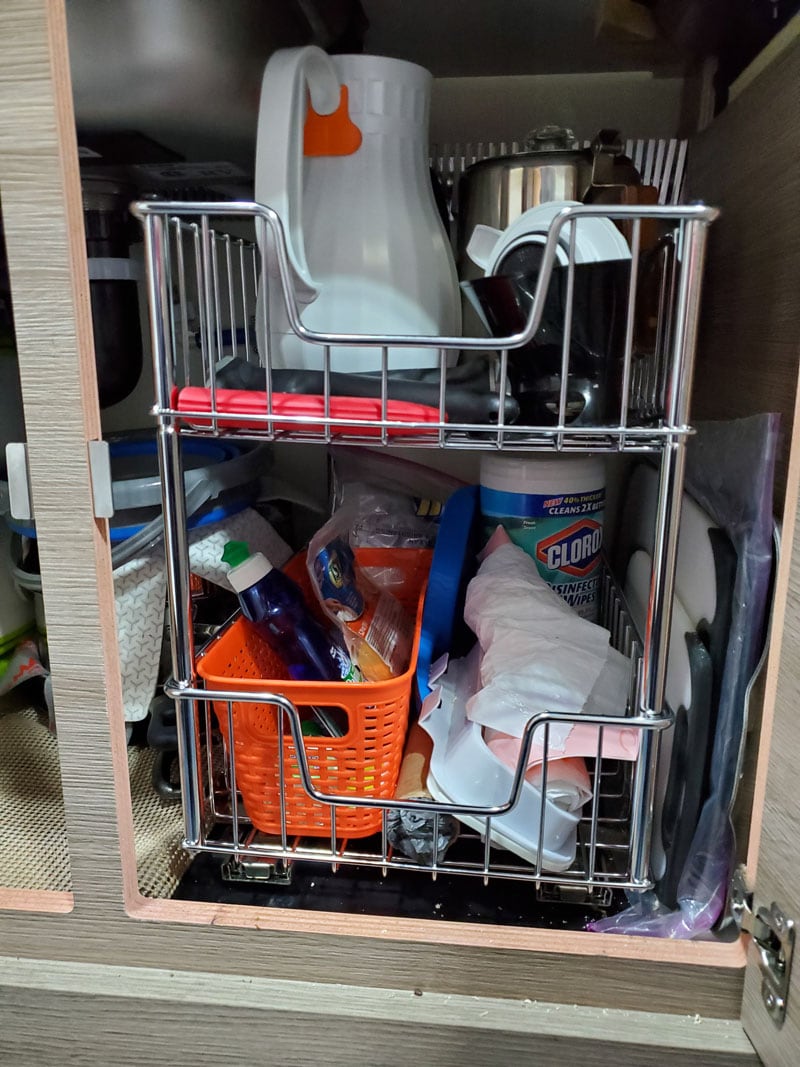

Pull Out Wire Shelving Drawer

The system seems to work very well.  The slides do have a locking system.  When you push the basket back in, it locks.  You must pull it with a tug to get it to release, so it travels very well.

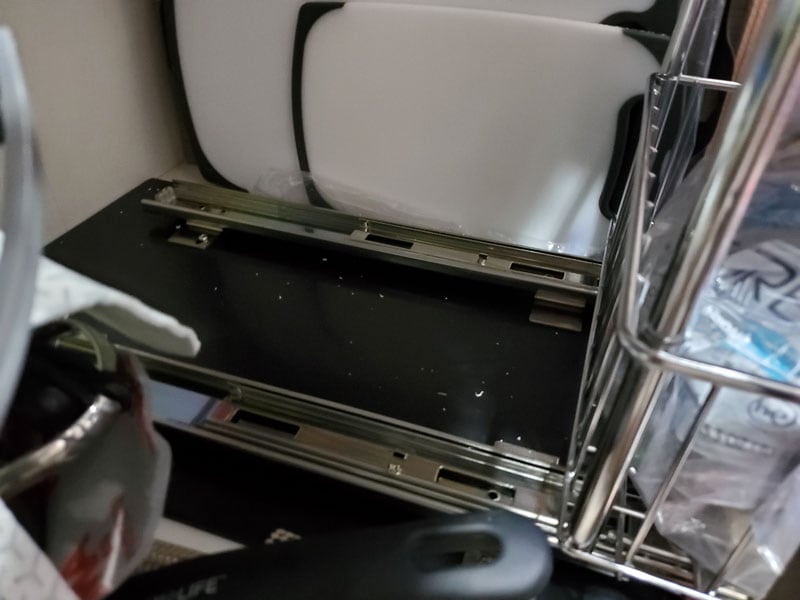

Pull Out Wire Shelving Drawer Guides

As you can see in the picture, there is a black polycarbonate plate attached to the slide rails.  I had to add the plate to raise the slide up enough to clear the front cabinet fascia lip.  The front edge is about 1-inch higher than the shelf.

The polycarbonate is very strong and thick. I cut a piece to fit the area for strength.  This cabinet shelf has a false area about 4-inches directly behind the front fascia of the cabinet.  The polycarbonate board is very strong and can hold the slides and weight of the basket.  It is very stable since it is attached to the main shelf.  The front of the shelf has no strength.

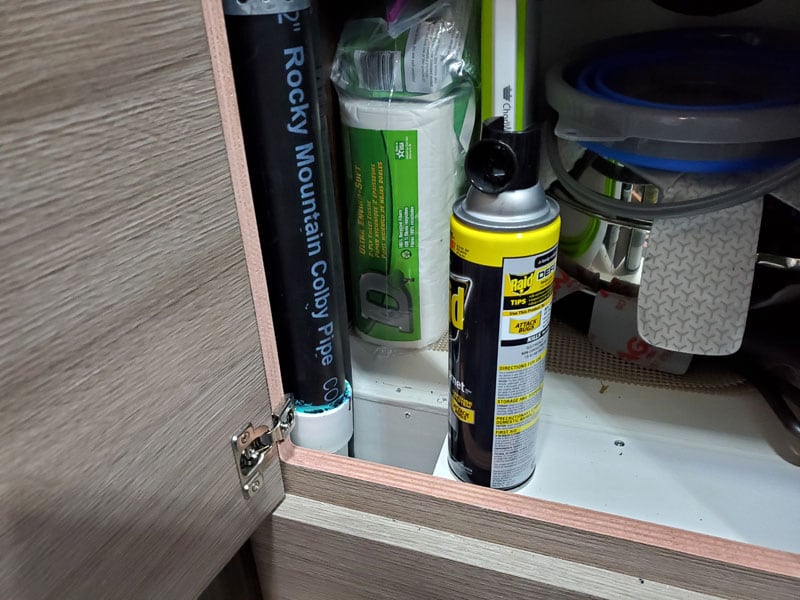

Pull Out Wire Shelving Under Sink Area

This is the cabinet to the side of my pullout basket.  If you look at the picture where the wasp spray is sitting, there is a screw just to the right side and up a little.

You will notice a seam running across the front of the cabinet.  This is a false shelf that covers drainpipes and other utilities.  If you look to the left of the can there is a hollow area.  This panel is not very thick or strong.  That is why I used the polycarbonate to overlay this area.  You could use plywood as well.  I chose the polycarbonate because I had it available.

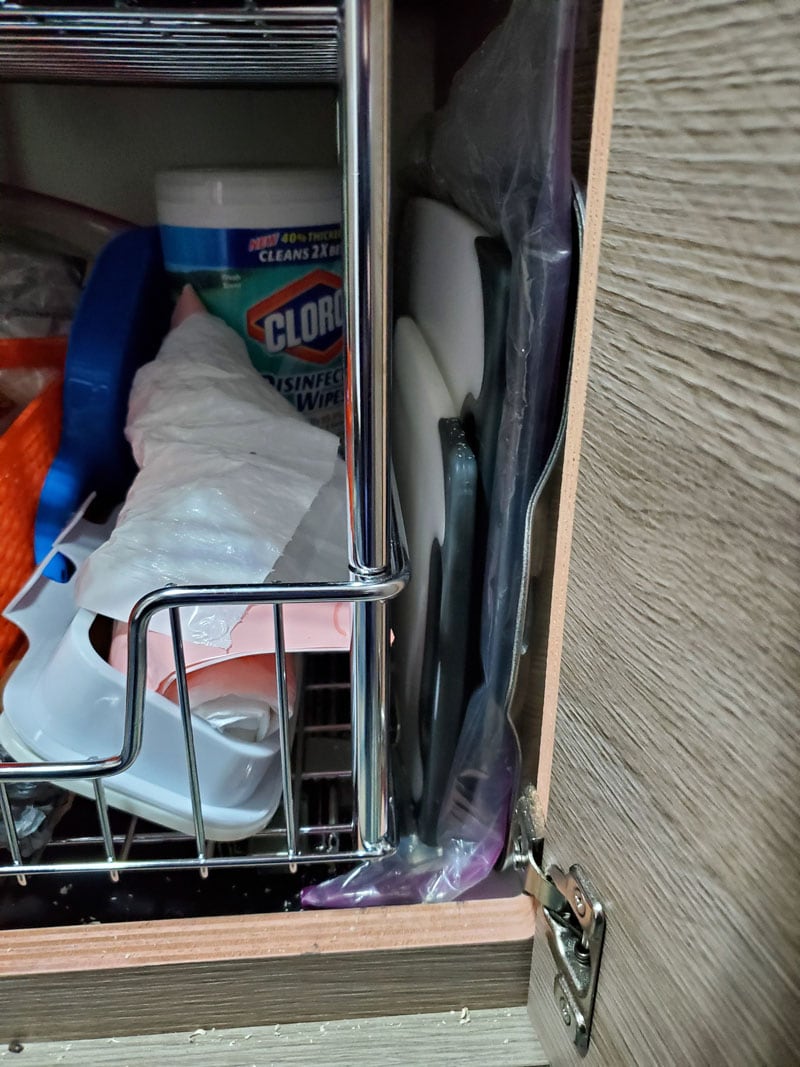

Pull Out Wire Shelving Storage Right

To the right of the pull-out basket I have stored several cutting boards and a skillet.  This makes great use of the space.

This modification took about an hour to complete.  The cost of the Trinity Ecostorage 2-Tier Wire Drawer with slides was $55.  This was an easy modification. I think most folks could do this with ease.

Disclaimer: The modifications above are submitted by Truck Camper Magazine readers. It is your responsibility to make sure that any do-it-yourself modification project you undertake is safe, effective, and legal for your situation.
