No Drill Rotopax Mount

Paul Lookerse, Winchester, California
No Drill Rotopax Mount
2020 Toyota Tacoma
2021 Four Wheel Camper Fleet

Rotopax Slides Into Mount Four Wheel Camper

I’m an overlander and needed additional fuel storage, so I made a rack to hold two four gallon Rotopax.

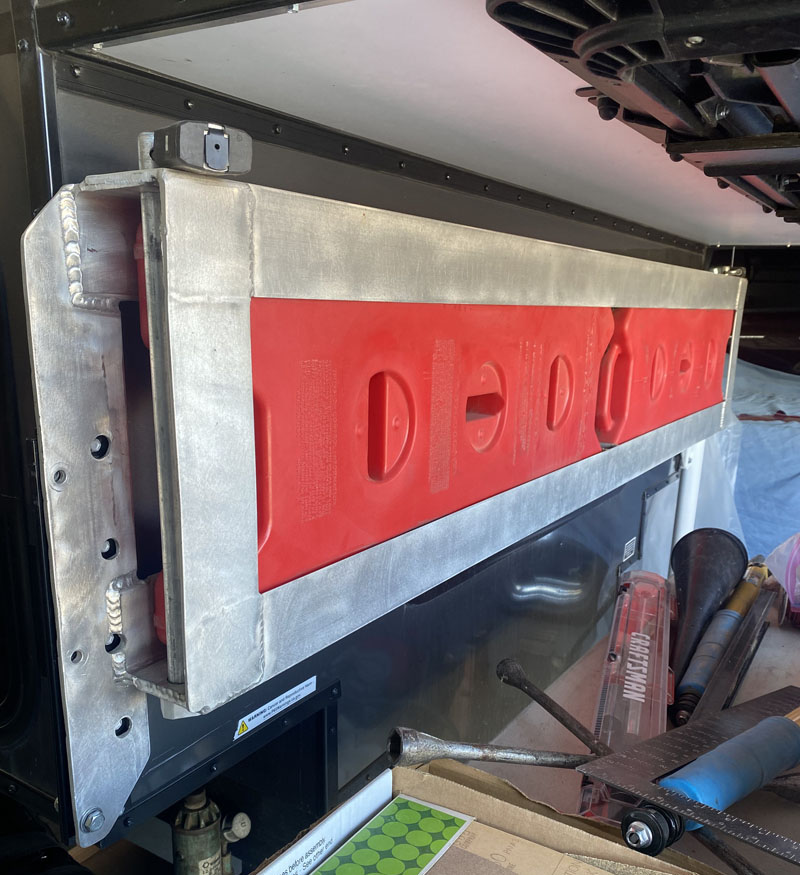

Rotopax Mount Front Wall Of Four Wheel Camper

In the pictures, you can see that I have two four gallon Rotopax that slide into an aluminum bracket.

Rotopax Mount Four Wheel Camper Straight On

The brackets were attached to the jack brackets and no holes were drilled into the camper. The dimensions are 4.5 inches wide by 20 inches high and 79 inches long.

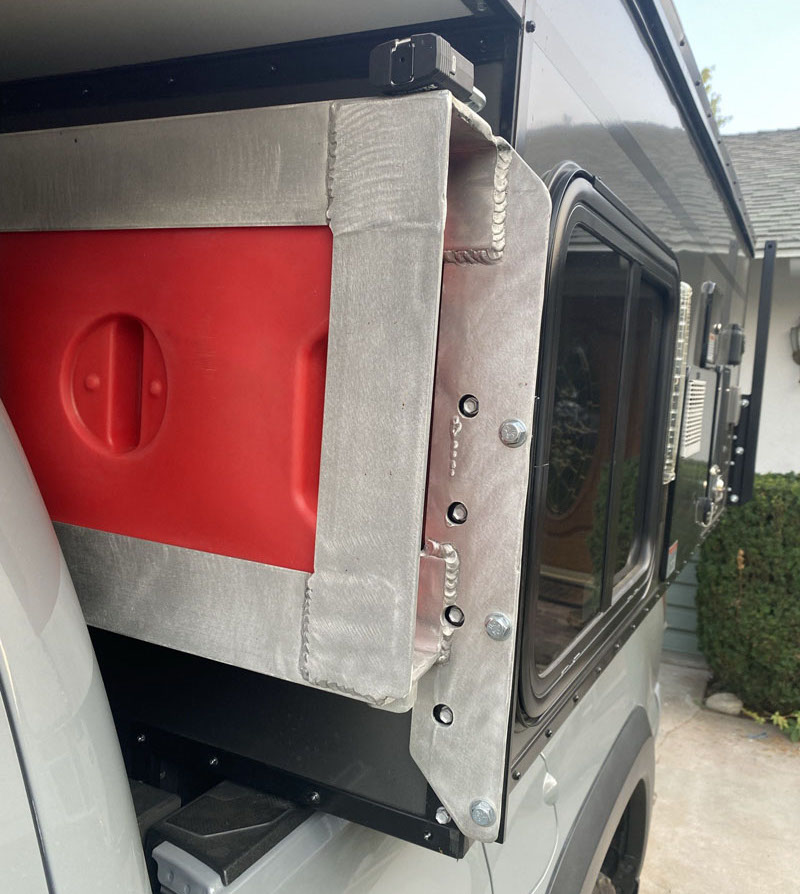

Rotopax Mount Four Wheel Camper Attached To Jack Bracket

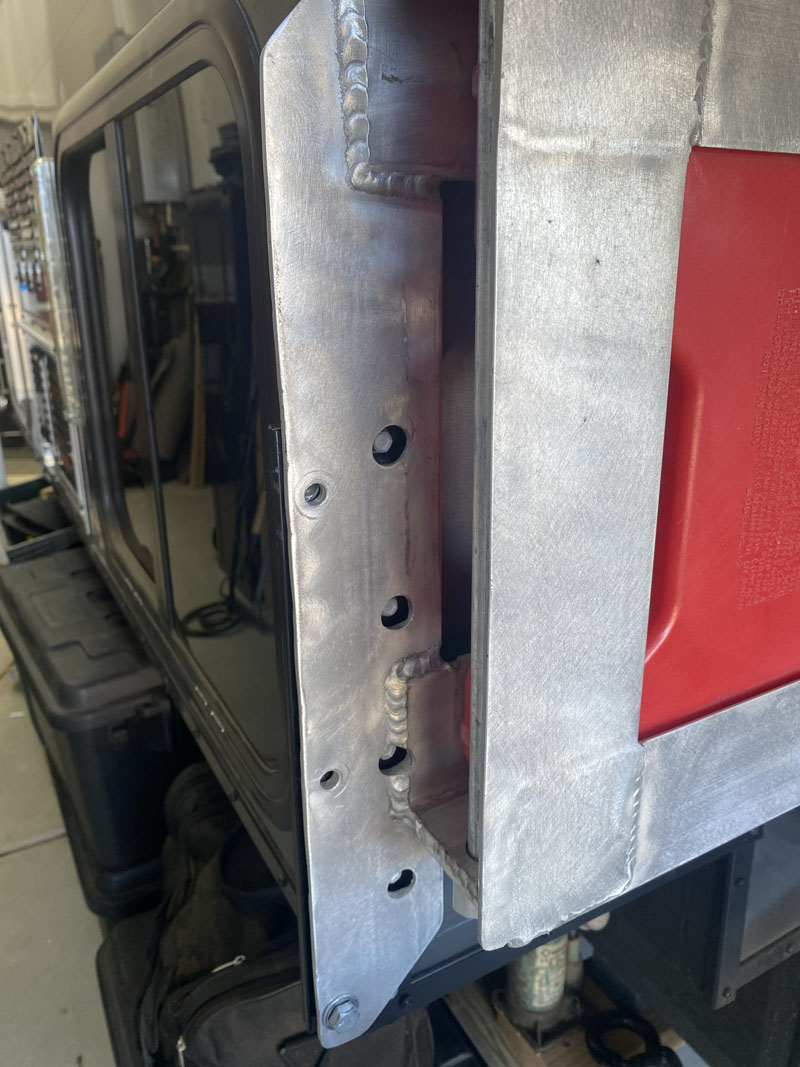

Rotopax Mount Bracket Four Wheel Camper

Rotopax Mount Jack Bracket Four Wheel Camper

A solid aluminum rod with a padlock on the top secures the gas cans in the bracket to deter theft.

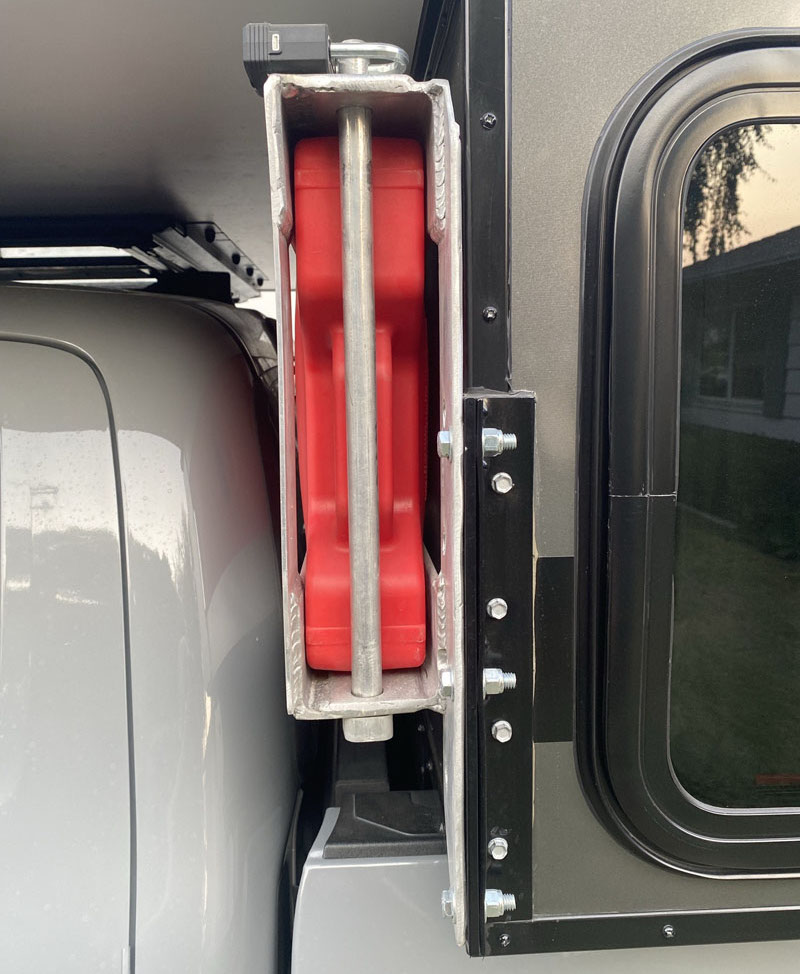

Rotopax Mount Four Wheel Camper In Between Truck And Camper

Rotopax Mount Locked Four Wheel Camper

The camper is loaded all the way to the front against its bump stops and has plenty of room between the Rotopax brackets and the cab.

Rotopax Inside Mount Four Wheel Camper

I purchased the 2 1/2 inch angle, 3/4 inch rod, and 3/16 inch flat plate aluminum from a company called Patton Steel in San Bernardino, California.

So far this modification has been great! It’s nice knowing I’ve got it if needed.

It took me eight hours to complete this modification.  The total cost of the project is approximately $350. That is for the materials and the purchase of two of the Rotopax.  In my opinion, the skill level of this modification is extremely hard.
