6 Ways For Safe Cabover Entry

A truck camper’s cabover is sometimes quite a jump to get into, especially in the middle of the night.  Six Truck Camper Magazine readers share how they make getting in and out of the cabover easier and safer.

Mods for safer truck camper cabover entry

1. Access Stairs To The Cabover

Submitted by: Ken Larson, 2016 Ram 3500, 2017 Bigfoot 25C10.6

My wife and I are in our sixties.  Climbing in and out of the bed needs to be done with more caution and care.  I made a couple of carpeted boxes to lessen the height of the steps which worked, but could tip with a misstep.

Stairs To Bed For Easier Access

I decided to try to build something a little better aesthetically, easier to climb up and down, lighter in weight and easier to move out of the way to free up floor space.

I went over the plan with my wife.  She then tried to describe to me what she wanted.  I silently listened after which she said, “You will probably just do it your way.”  I proceeded with my plan.

I am far from being a master woodworker.  I just did what made sense and measured a dozen times before making my cuts.

Stairs To Cabover Bed

I used clear grained hemlock.  Tools used were a table and miter saw, a router, glue, clamps, and some insurance screws.  I finished it with stain and spar urethane.

It took me a couple of weeks working on it slow and steady.  The two coats of urethane also take forever to cure.

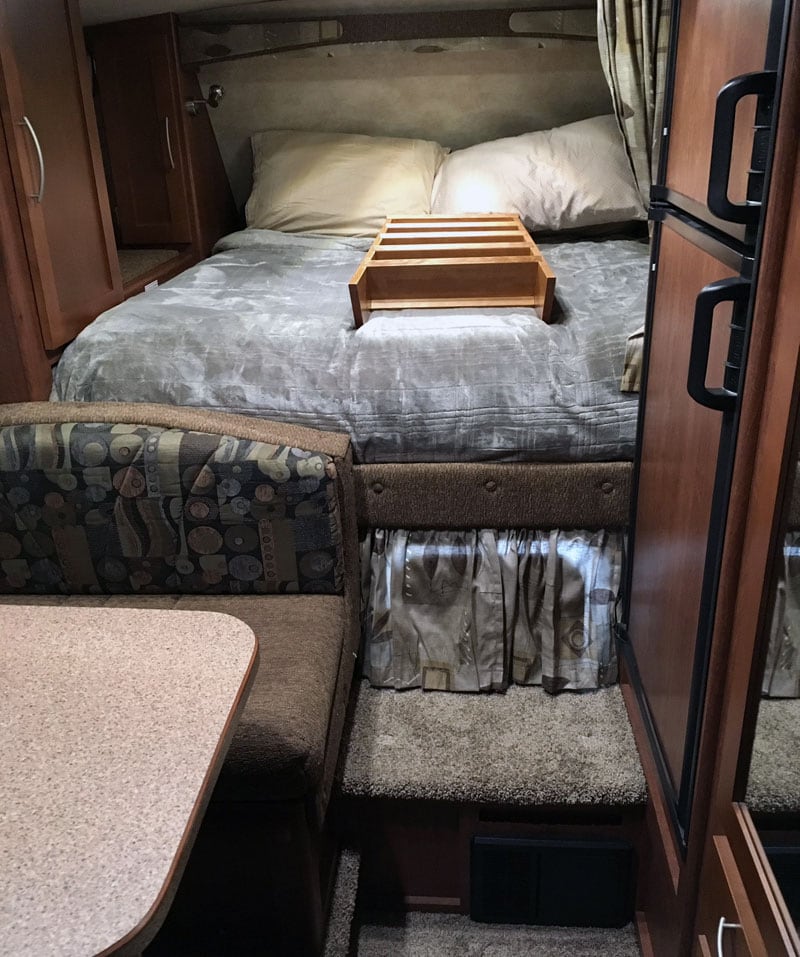

Ladder Stored On Bed

The top of the steps wrap perfectly on the footboard to secure it.  Removal is a simple lift and pull.  When it’s not needed I just slide it on the bed.  Since I am the first one up in the morning, I made it narrow enough to open the refrigerator a bit.

My wife tested it out and thinks I am a genius.

It took me 12 to 16-hours over two weeks to complete this modification and cost me $60 for the wood and urethane.  I bought a router and bit set at Harbor Freight for about $130.  I don’t see the router set getting a lot of use in the future.

In my opinion, the skill level of this modification is easy.

2. Step Riser and Storage Area

Submitted by: Neil and Yoly Mullen, 2016 Ram 2500 HD, 2016 Adventurer 80RB

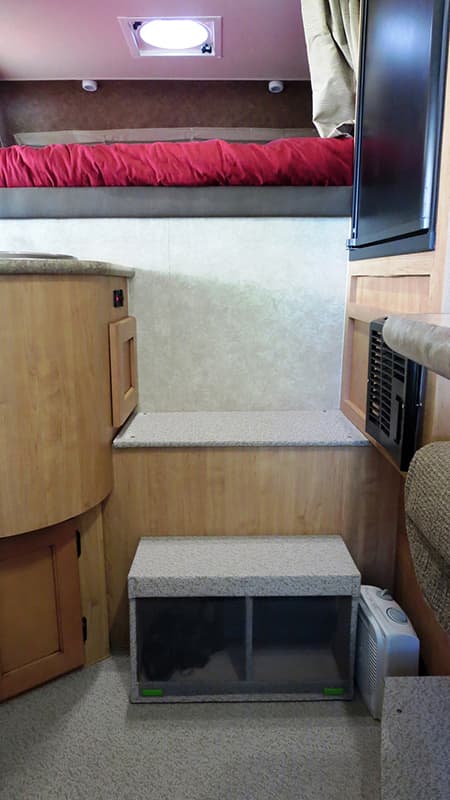

Step Riser Adventurer 80RB camper

Our primary modification was a step riser for accessing the bed area. Yoly is not tall, so she has short legs. The initial 22.5-inch step up from the camper floor was difficult for me, let alone her. Coming down from the cabover’s bed area was actually harder than stepping up.

I could easily see Yoly, half-asleep in the middle of the night, getting up for bathroom access in the dark, misjudging the long drop-off, and falling. This simply had to be addressed. It also makes me wonder if the manufacturers camp in their own units.

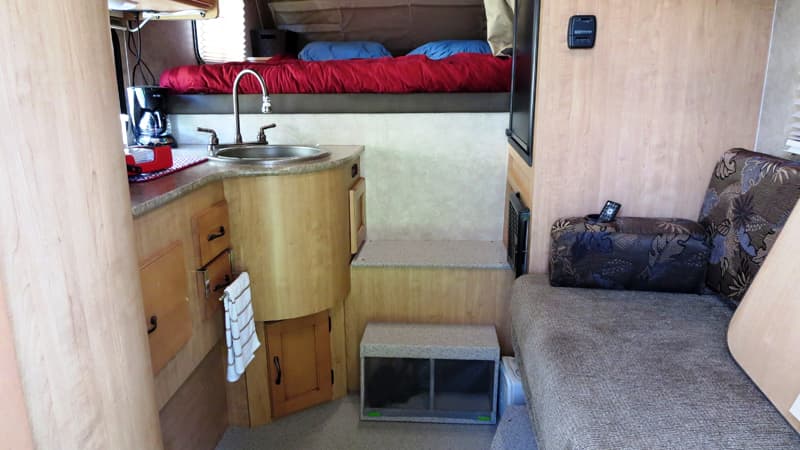

Step Riser Adventurer 80RB

The step riser is constructed out of wood, glued and screwed together and covered with the same floor material as the OEM floor covering.

Step Riser Adventurer 80RB to make getting into cabover easier

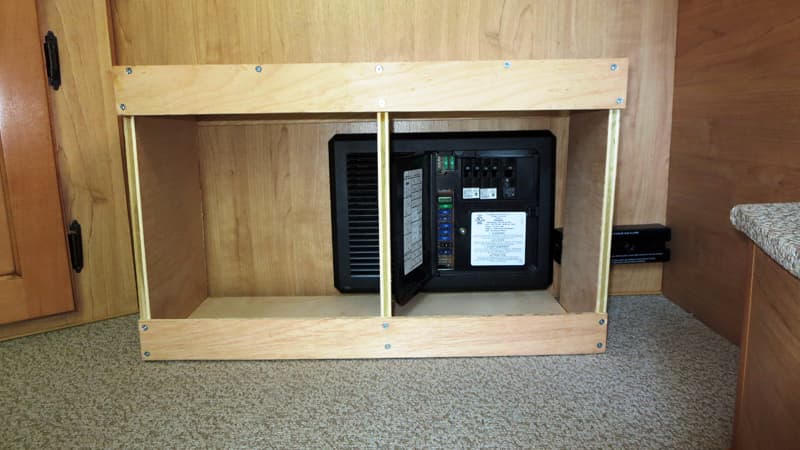

The step riser actually rests flat on the floor (full box section) so all our weight is carried by the floor itself. It is through-bolted with a 1/2-inch thick strip of birch laminate on the inside of the vertical wall section to locate and stabilize the assembly.

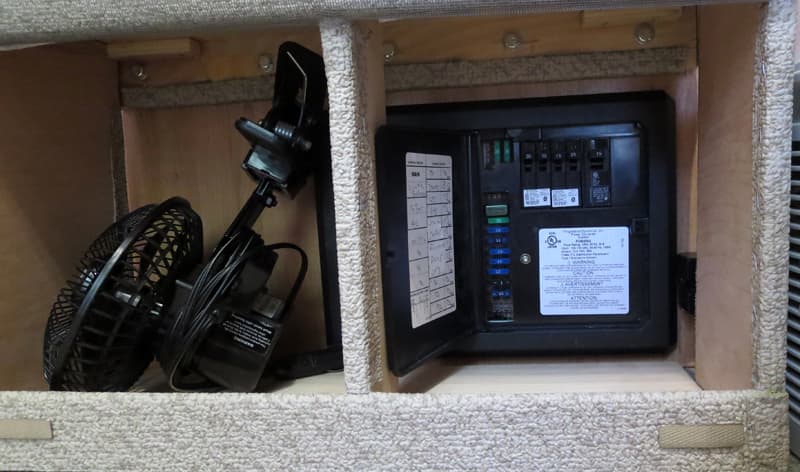

Access converter through step riser

The step riser covers the converter, so it has an open front covered with soft screen material for proper ventilation and access. The screen is secured with two magnets at the bottom.

Here’s a video I made of this modification:

The step riser makes a world of difference! Getting up and down from our camper’s bedroom is now much safer and easier. Over fifty nights of camping and about 10,000 miles of use, it has been trouble-free.

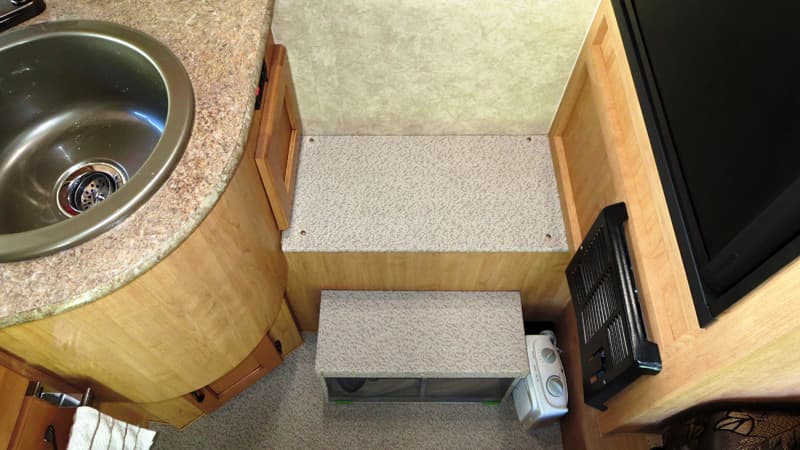

Step to make getting into bed easier

The step riser also makes a great little jump seat with back support. It can be utilized for sitting in a position that allows one to look out the back door while putting on shoes or boots.

It took me five hours to complete this modification and cost me $100 (covering material was $78 from the manufacturer).  In my opinion, the skill level of this modification is easy.

3. Grab Bar Makes Cabover Entry and Exit Safer

Submitted by: Bill Harr, 2005 Toyota Tundra, 2013 Four Wheel Camper Hawk Shell

In the Four Wheel Camper Hawk model, there isn’t a good place to grab when you’re getting out of the bed.  For us old guys, this is important for those late-night nature calls.

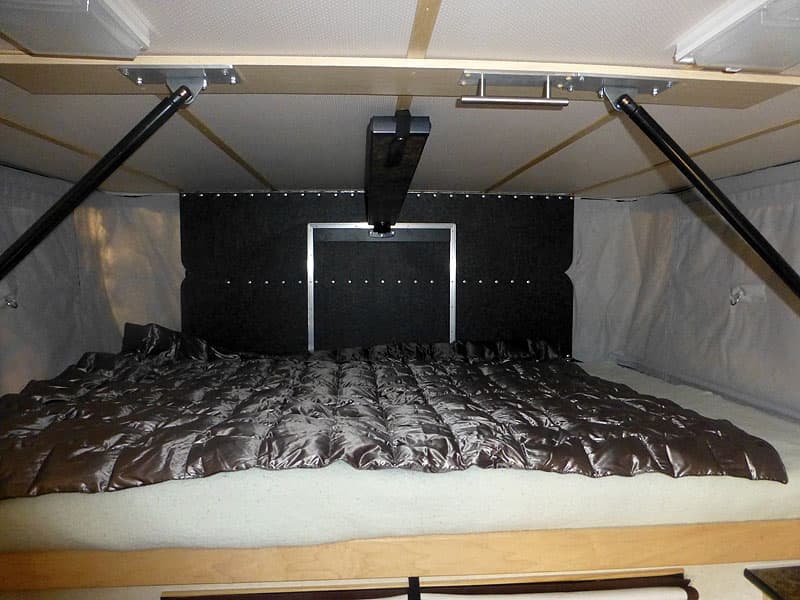

Handle to get in the overcab, Four Wheel Camper

To address this, I added a handle to the push-up board over the bed.  I looked at just a large gate handle, but my wife said not in her camper.

handle-to-overcabhandle for overcab camper

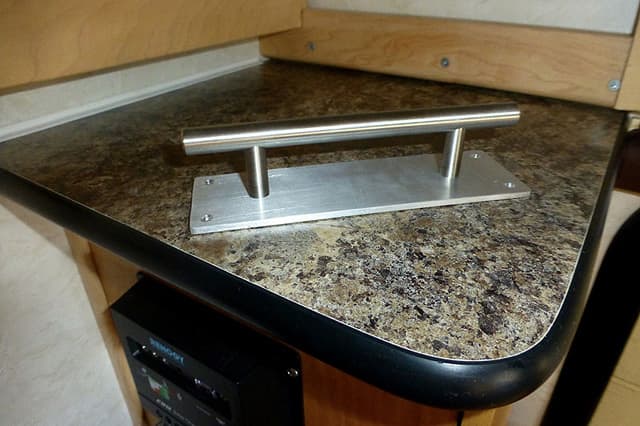

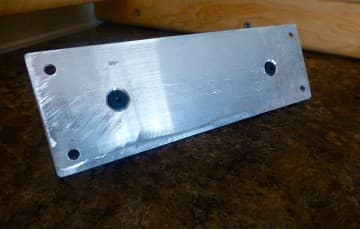

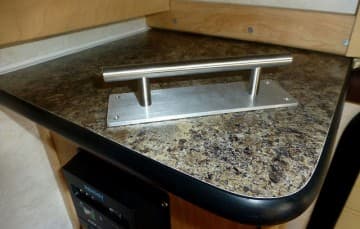

So I found a nice looking stainless drawer handle.  I cut a piece of aluminum flat bar, drilled holes and countersunk the back for flush Allen screws.

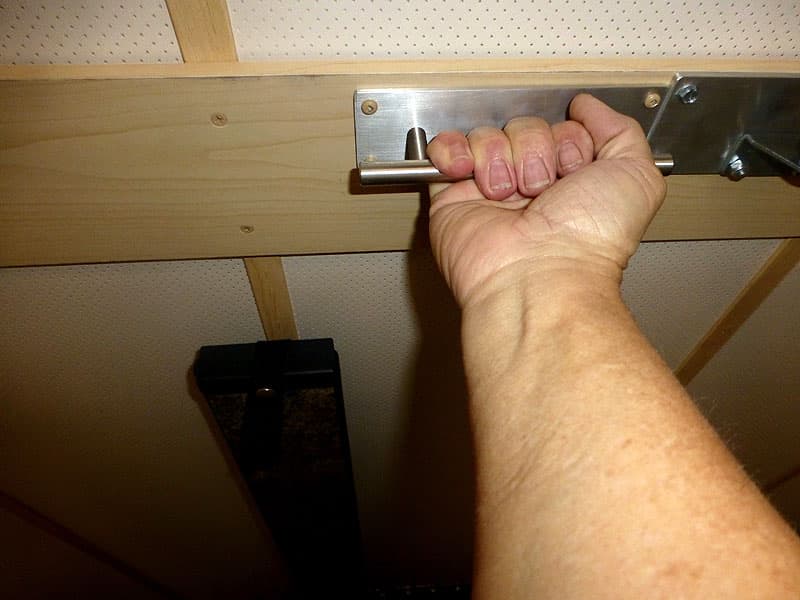

handle-bar-to-overcab

The handle is used every time we use the camper.  I’m not sure why I did not add it much earlier.

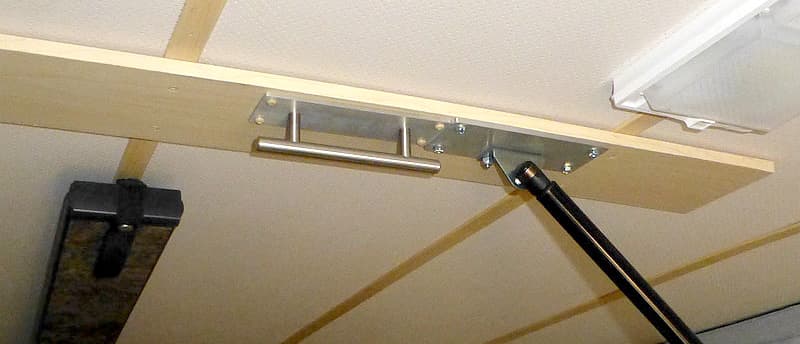

handle-mounted-overcab-fwc

It took me less than an hour hours to complete and cost under $10.  In my opinion, the skill level of this mod is easy.

4. Sturdy Folding Cabover Ladder

Submitted by: Vern and Tracy Mowrey, 2005 Dodge Ram 2500, 2007 Lance 845

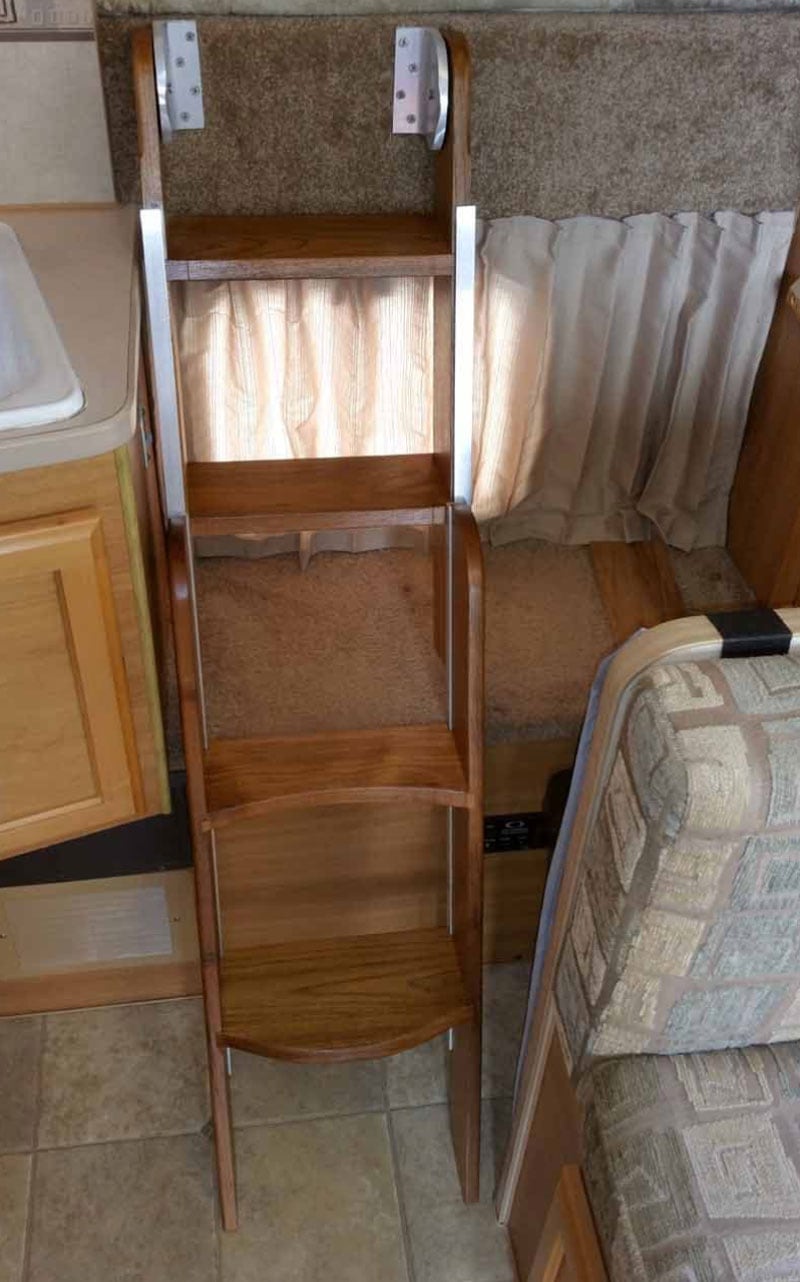

Safe To Bed Ladder Step

Above and Below: The steps going up to the overcab and coming down

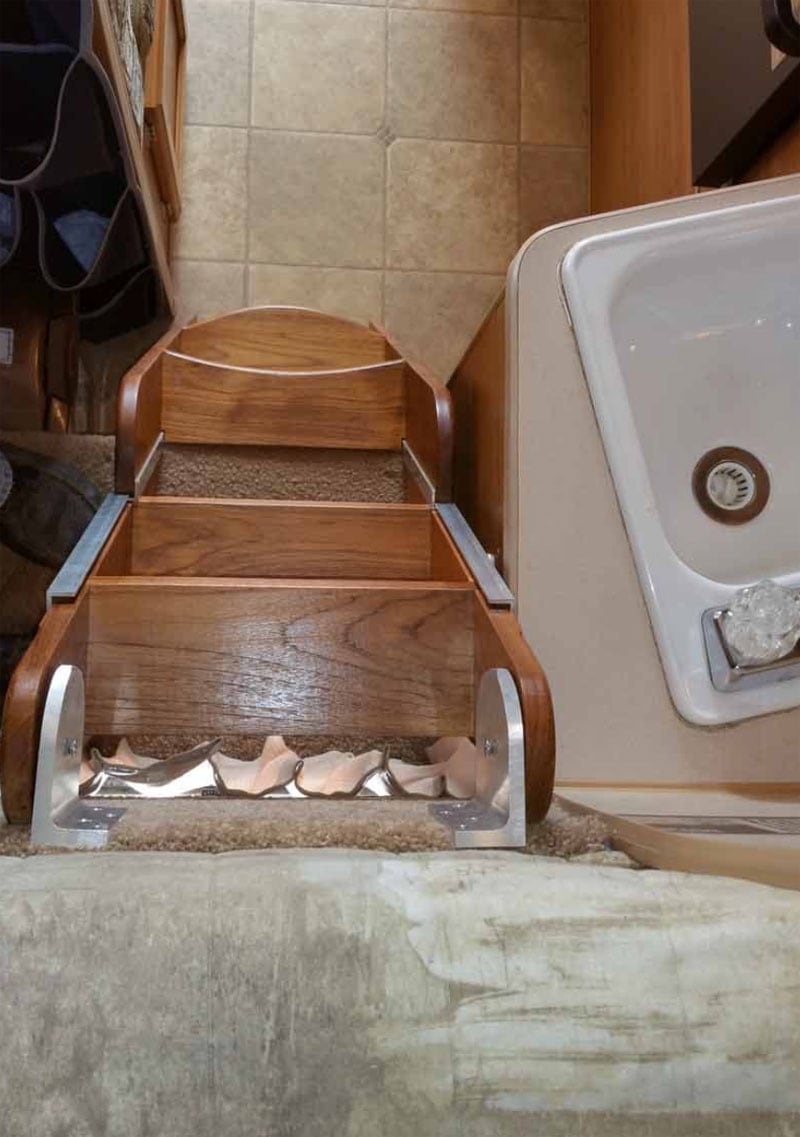

Looking Down At Safe Ladder Step

After both of us almost fell getting down from the bed, we decided the access to our bed in our Lance 845 needed to be easier and safer.

There were several considerations that we needed to work out.  We knew we needed the entry angle to be less steep.  We also needed the refrigerator door to be able to open all the way with our modification.

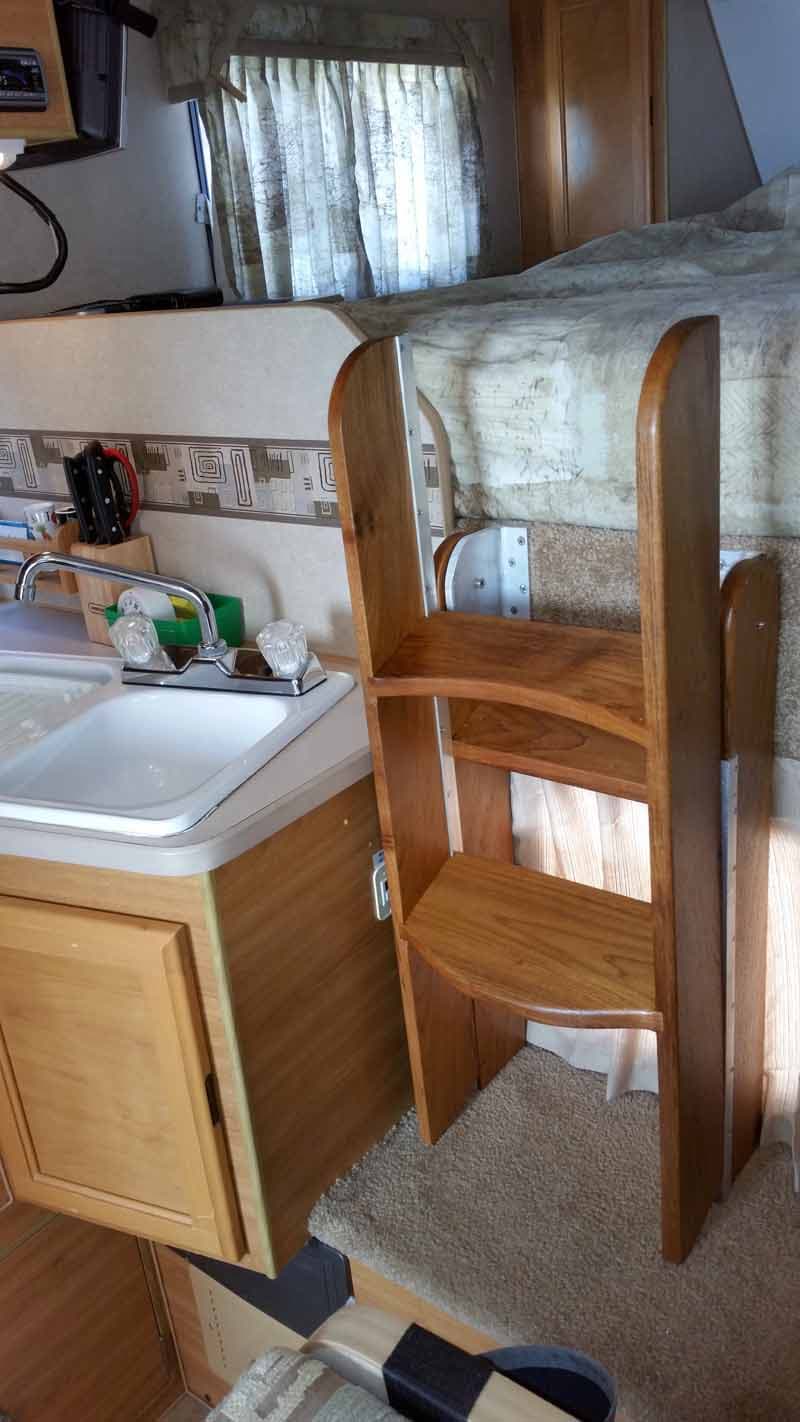

Mowrey-cabover-ladder-folded

Above: The steps can be raised and folded when not in use

The following universal design is what we came up with.  The unit is a miniature extension ladder anchored at the top and can be pulled out and slid down when needed.  Then it can be raised and folded back when not needed.

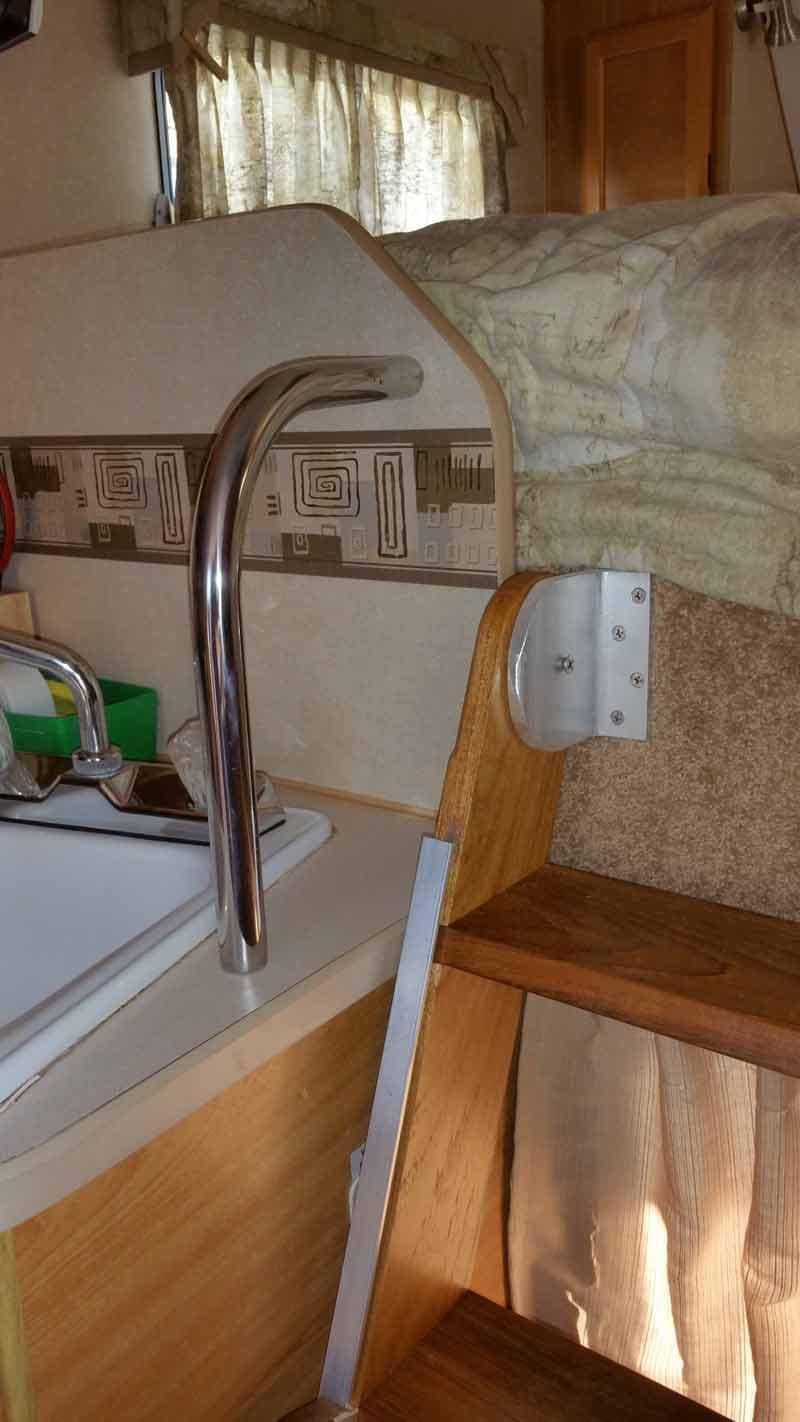

Mowrey-cabover-ladder-4

On a scale of 1 to 10, we both agree that it’s a 10.  All we have to do now is scurry up the ladder and climb on the bed now.  Coming down we just swing our legs over the end of the mattress and the steps are right there.  Even in the dark, it’s easy to find the steps.

It took me 20 hours to do the project comfortably, and cost $125.  In my opinion, the skill level of this mod is medium.

5. Ladder to Access Cabover Easier

Submitted by: Dewey Lackey, 2003 Silverado 3500, 2014 Lance 1172

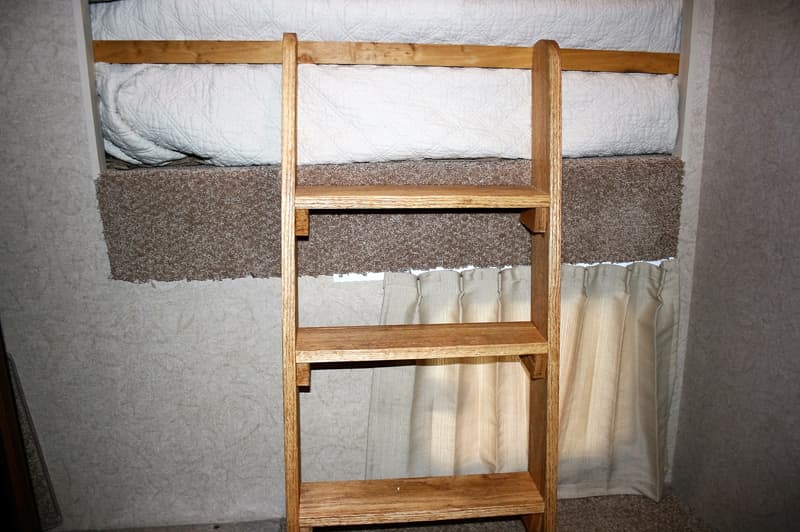

Ladder To Overcab in Lance 1172

I made a three-step ladder for easier access to the bed and adjacent area.  Previously we had been using a fold-up footstool.  We are in our seventies and needed a little more height.  We also wanted something that would not turn over or collapse.

Ladder To Overcab screws

I purchased one piece of kiln-dried white oak (5.5-inches) and made a ladder.  I countersunk 2-inch deck screws at each end of each step.  Before adding the finish, I cut and glued support pieces under each end of each step.

Ladder To Overcab support piece

Since our camper has a large slide that comes in next to the bed area, the ladder could not be permanently attached.  From the same piece of white oak, I cut a brace 1.5-inches wide and 2 inches longer than the opening to the bed.  When installing it, I put one end of the brace (which is attached to the ladder with two-inch screws) on the right side between the mattress and the wall.

Ladder To Overcab brace

Then I swing the ladder up and into the area on the other end, pull it down, and press it down to the step-up area.  A slight bevel on the ladder is necessary and will be determined by the distance to the brace.  This might be different for different manufacturers.  When we are ready to close up, we remove the ladder and stow it on top of the mattress.

We have been pleased with the ladder.  It gives us several steps to the bed area, instead of one step and some old muscles.

It took me two hours to complete this modification and cost me $12.  In my opinion, the skill level of this modification is easy.

6. Step Ladder For Easier Entry Into Bed

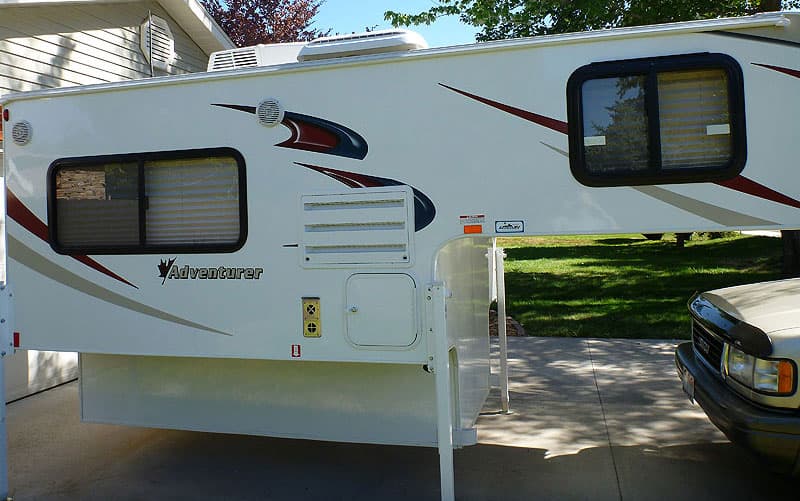

Submitted by: Jon Vernon, 2009 Dodge Ram 2500, 2016 Adventurer 80RB

We have a 2016 Adventurer 80RB.  When getting out of bed, it was a huge step to the shelf and down to the floor – especially at night with no light.  Then, climbing back up again was a challenge.

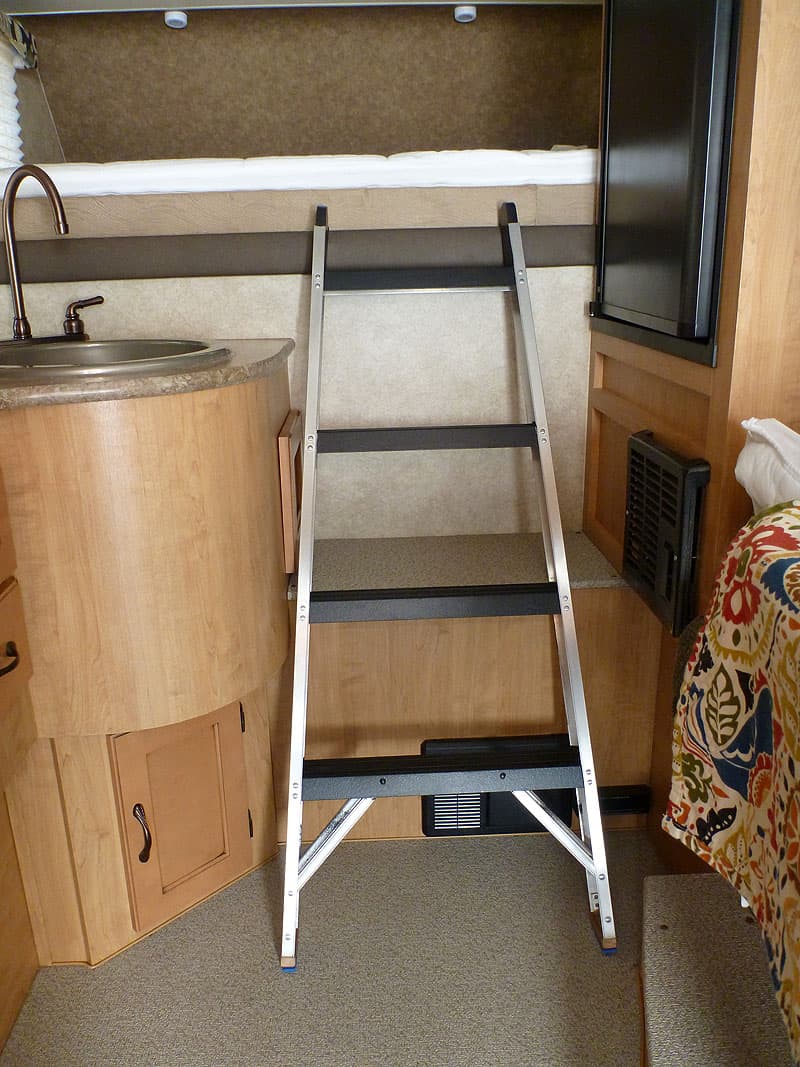

I used an old step ladder and measured from the bed rail to the floor right in front of the middle shelf step.  After cutting the ladder to length, I used one-inch wide aluminum and fashioned a hook to attach to the top of each side of the ladder.  The aluminum hook would hook over the edge of the bed deck.

Step Ladder Adventurer 80RB

I then removed the rubber feet off the bottom of the ladder and added a one-inch block so that the step on the ladder aligned at the same height as the shelf step.  That way our foot was supported by both the ladder and the step.

Next, I reinstalled the rubber feet on the bottom of the ladder and coated the step with spray-on rubber to make it easier on bare feet and slip-resistant.

Adventurer 80RB modification

It works great.  No more climbing down backward-looking for the step and the floor. You just walk down the step either forward or backward with no problem.  The step is far enough to the side to allow opening the refrigerator without moving it.  If it has to be moved, it is so light that you can throw it up on the bed and out of the way.

It took me four hours to complete this modification and cost me $30.  In my opinion, the skill level of this modification is medium.

Disclaimer: The modifications above are submitted by Truck Camper Magazine readers. It is your responsibility to make sure that any do-it-yourself modification project you undertake is safe, effective, and legal for your situation.
